About the product

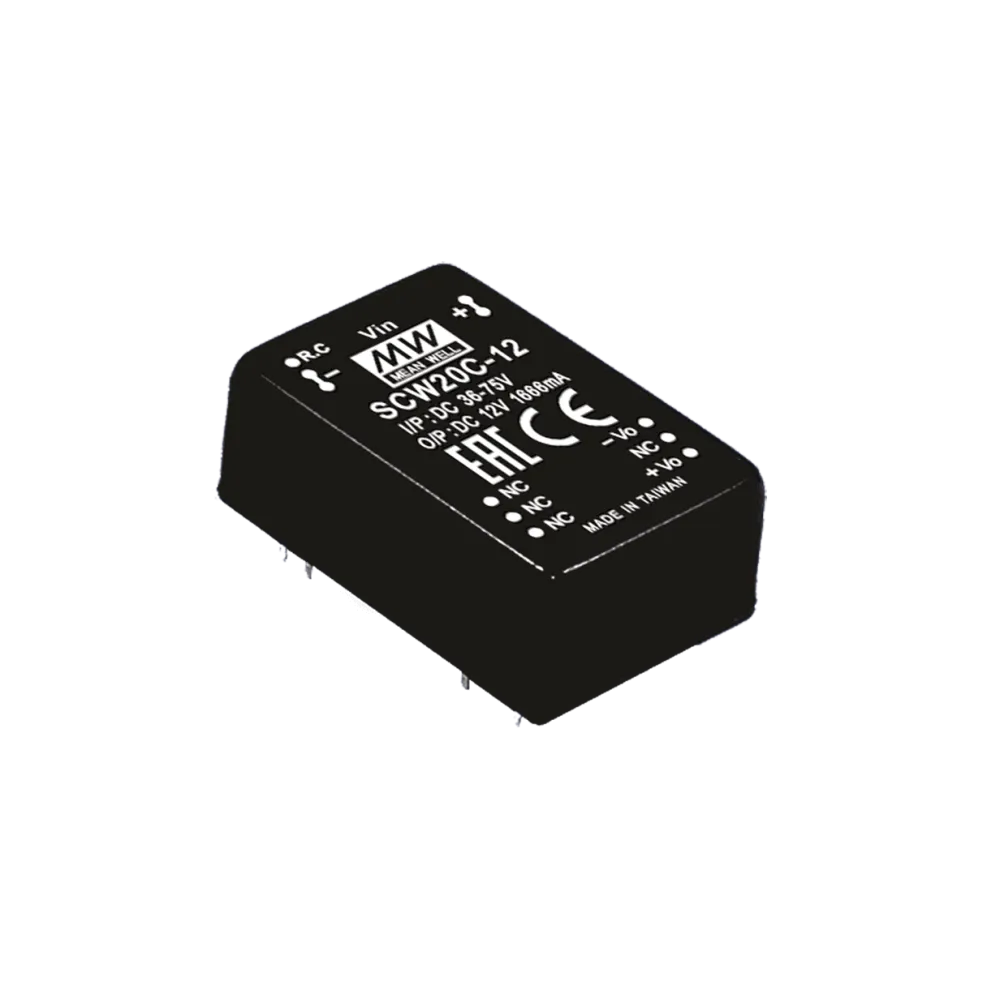

20W DC/DC-Converter, Input 36…75V, Output 12V/1.666A
Technical data
- DIP24 package industry standard pinout
- 2:1 wide input range
- Operating temperature range -40°C until +80°C
- No minimum load required
- Comply to EN55032 radiated Class A without additional components
- High efficiency 89%
- Protections: Short continuous circuit/Overload
- 1.5KVdc I/O Isolation
- Remote On/Off Control
- 3 years warranty
- Manufacturer Mean Well
Product specifications
| Output voltage (VDC) | 12 V |
| Manufacturer | MEAN WELL |
| Application | ITE/AV |
| Height | 10.2 mm |
| Width | 20.3 mm |
| Length | 31.8 mm |
| Package / case | DIP24 |
| Additional functions | Remote ON/OFF |
| Regulation | Regulated |
| I/O isolation | 1500 V DC |
| Input voltage ratio | N/A |
| Input voltage range (VDC) | 36-75 V |
| Nominal input voltage (VDC) | 48-72 V |
| Output current | 1670 mA |
| Power | 20 W |
| Manufacturer warranty | 3 years |
