About the product

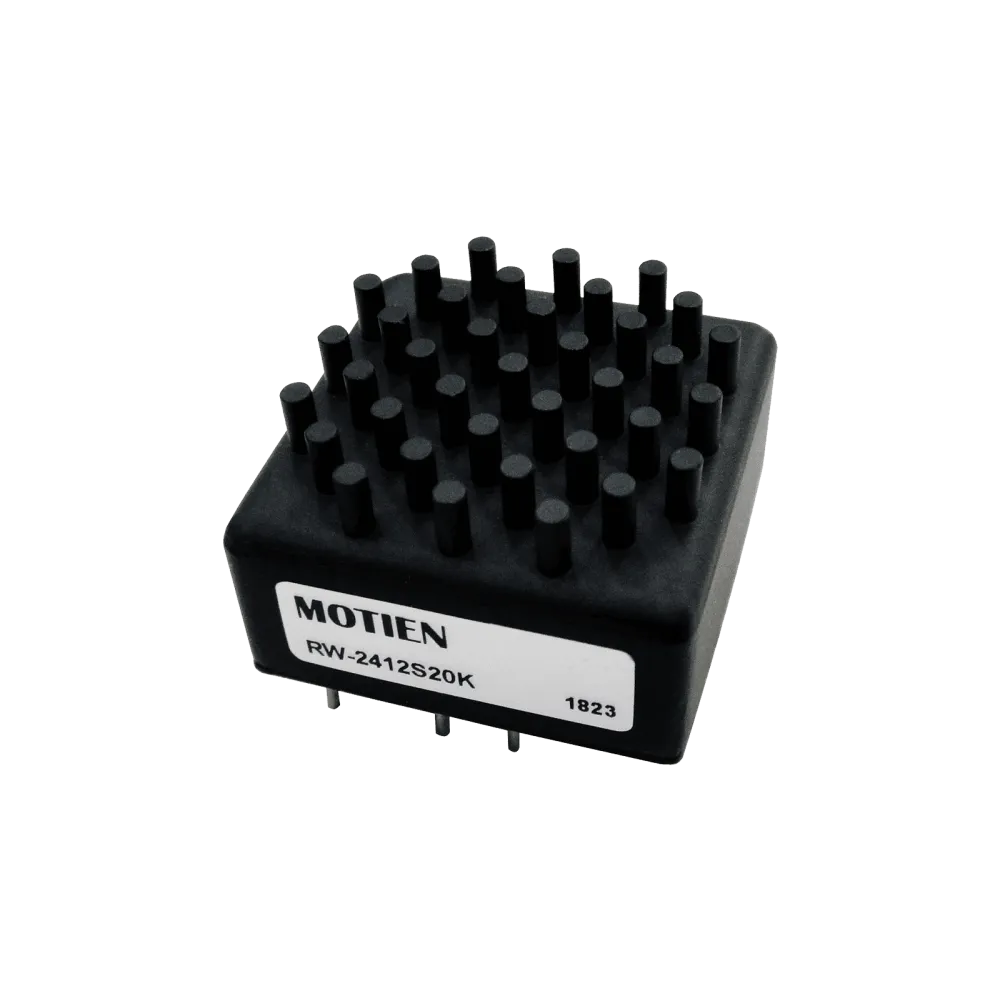

20W DC/DC-Converter, Input 13…70V, Output +/-12V / +/-0.833A
Technical data
- Ultra Wide Input Range
- Efficiency up to 86%
- 3000Vdc Isolation
- Continuous Short Circuit Protection
- Under Voltage Lock Out Circuit
- Over Voltage Protection
- Over Load Protection
- -40°C until +85°C Operating Temperature Range
- Remote On/Off
- EN50155 approval for railway applications
- 3 Years Warranty
- Manufacturer Motien
Product specifications
| Output voltage (VDC) | 12 V |
| Manufacturer | Motien |
| Application | ITE/AV, Railway |
| Height | 16.4 mm |
| Width | 27.6 mm |
| Length | 27.6 mm |
| Package / case | 1.09 x 1.09 Inch |
| Additional functions | Remote ON/OFF, Voltage Trim |
| Regulation | Regulated |
| I/O isolation | 3000 V DC |
| Input voltage ratio | N/A |
| Input voltage range (VDC) | 13-70 V |
| Nominal input voltage (VDC) | 15-48 V |
| Output current | 833 mA |
| Power | 20 W |
| Manufacturer warranty | 3 years |
