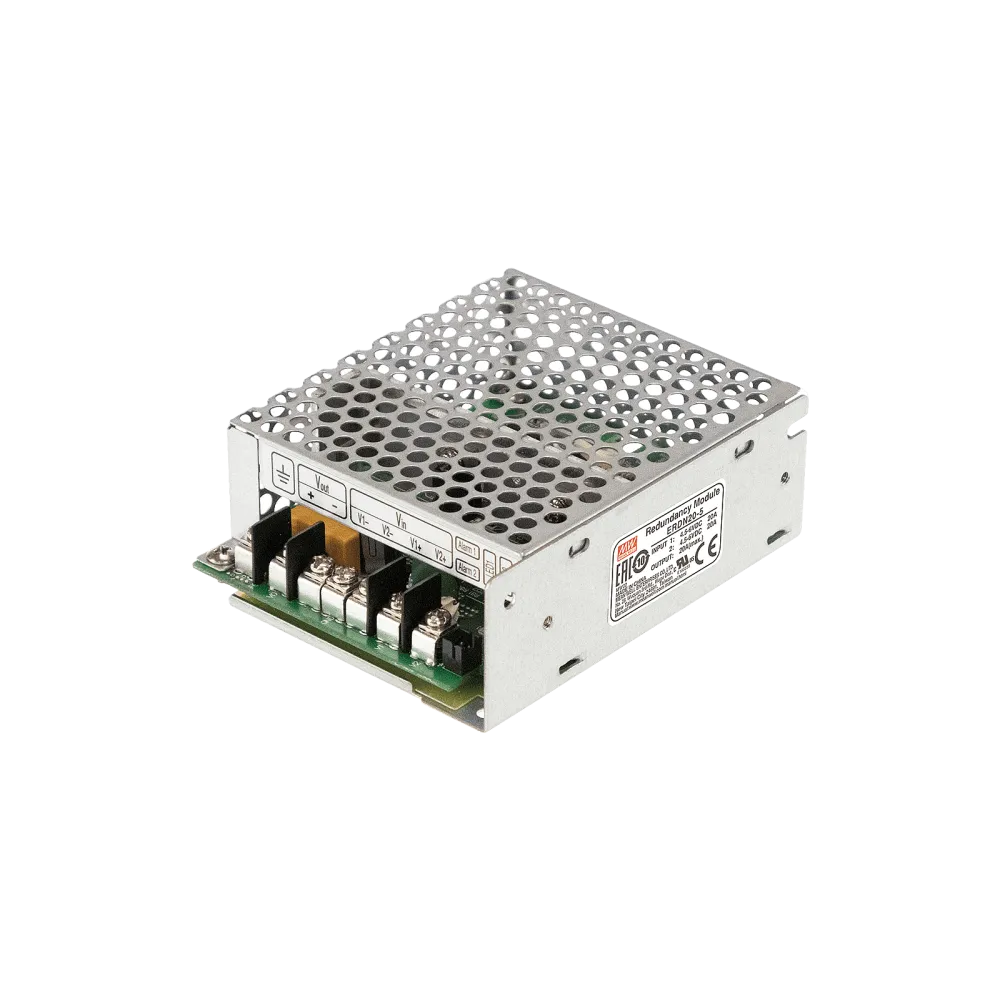

20A Redundancy module for 48V systems

ERDN20 series is a 20A redundancy module that can be used with a power supply to improve overall system operation reliability. The MOSFET technology implemented can reduce heat loss and reduce the voltage difference between the input and output voltages. Built-in 2 channels DC OK relay contacts for monitoring output status.

Technical data

• Support 1+1 and N+1 redundancy system
• 2 channels input and 1 output
• Output current up to 20A
• Iput per channel 10A x 2 or 20A x 1
• Efficiency 98%
• Voltage drop 0.25Vdc max
• 2-channel DC OK signal and alarm relay contact
• Dimensions 82 x 99 x 36mm (W x L x H)
• 3 years warranty
