About the product

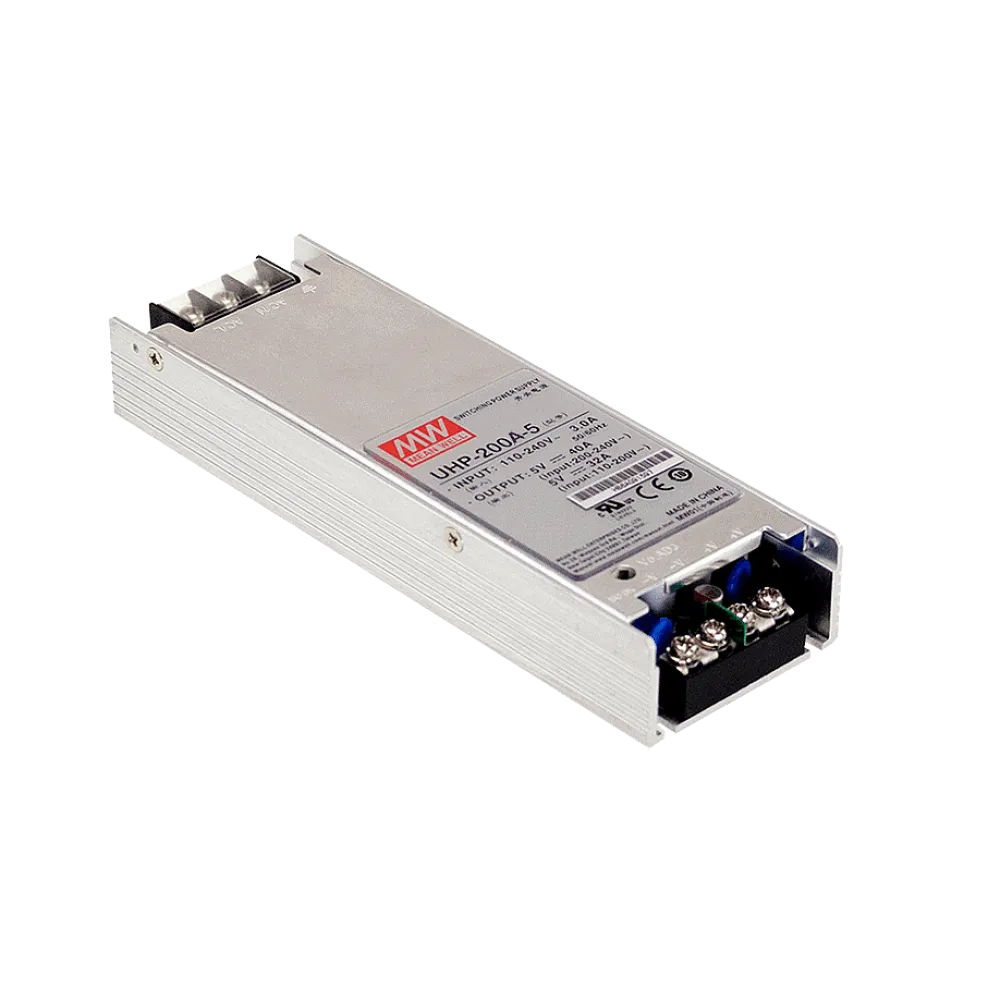

UHP-200A series is an LED display power solution. The ultra low profile design that allows the height and weight of the sign module to be slim. It greatly simplifies the delivery and installation process. Accounting for high efficiency and energy saving, the series effectively achieves electricity reduction. It is suitable for LED signage display, moving sign, LED channel letter and LED TV wall etc.
Technical data
- Universal AC input 90 to 264Vac
- Built-in active PFC function
- Slim and Low profile (26mm)
- Low leakage current <1.0mA
- Working temperature range -30°C to +50°C
- Dimension 167 x 55 x 26mm (L x W x H)
Product specifications
| Output voltage (VDC) | 5 V |
| Manufacturer warranty | 3 years |
| Manufacturer | MEAN WELL |
| Status signals | DC OK signal |
| Application | ITE/AV |
| Voltage setting range | 4.7-5.3 VDC |
| Height | 26 mm |
| Width | 55 mm |
| Length | 167 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 90-264 V |
| Power | 200 W |
| Efficiency | 88.00% |
Data sheets
