About the product

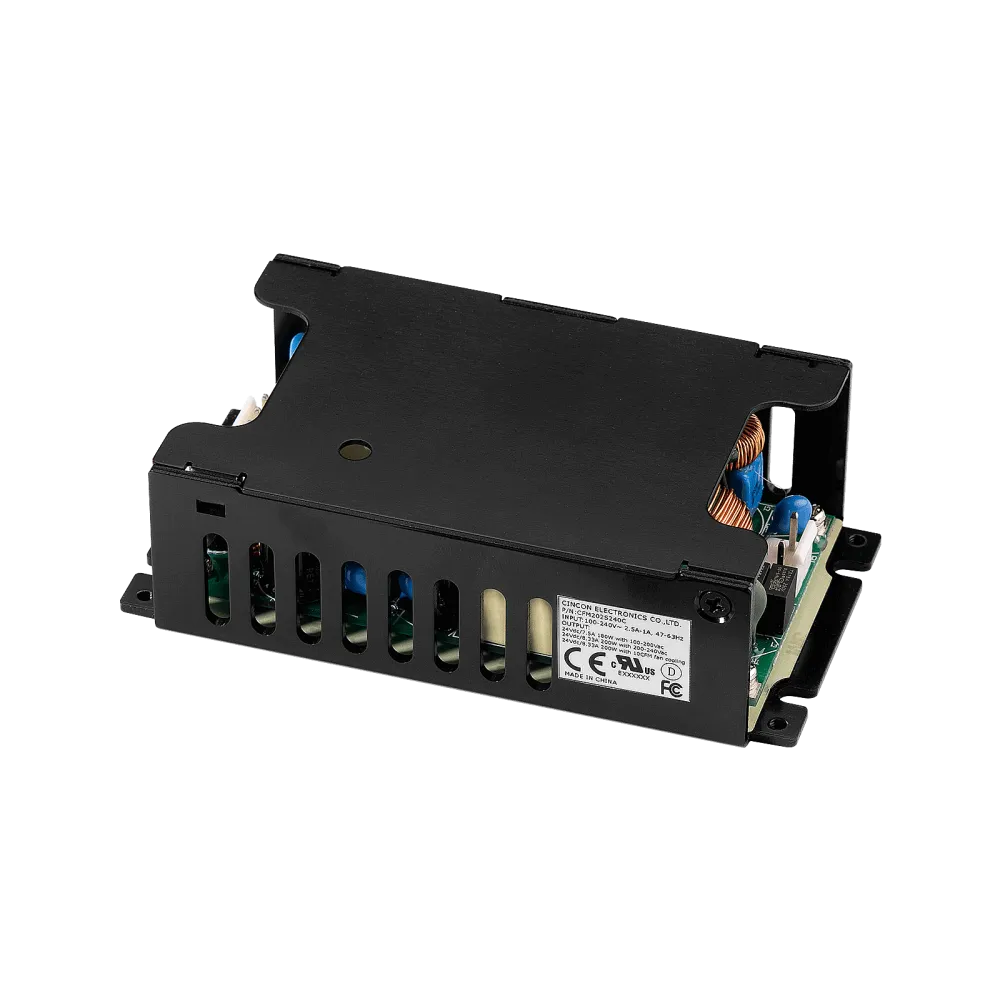

Cincon’s CFM202S series is a high-power density ITE AC/DC power supply which is compatible with both Class I and Class II and offers up to 200W of power with a dimension of 64×116.8mm. It has IEC/UL/EN62368-1 and IEC/EN60335-1 safety approvals.
Version C (Cover)
Technical data
- Universal Input Range 90… 264Vac
- High Efficiency Level up to 94%
- Active PFC Function
- Dimensions 2.52 "x 4.6"
- 180 Watt with Natural Convection
- 200 Watt with Fan cooled
- No load Input Power Consumption <150mW
- Continuous Short Circuit Protection
- Operating Altitude 5000m
- Safety Approvals IEC/EN/UL62368-1 and IEC/EN60335-1
- EMI Safety Meets Class I and Class II
Product specifications
| Output voltage (VDC) | 48 V |
| Efficiency | 94.00% |
| Manufacturer | Cincon |
| Application | Household, ITE/AV |
| Height | 34.5 mm |
| Width | 64 mm |
| Length | 116.8 mm |
| Protection class | Class I, Class II |
| Input voltage range (VAC) | 90-264 V |
| Power | 200 W |
| Manufacturer warranty | 3 years |
