About the product

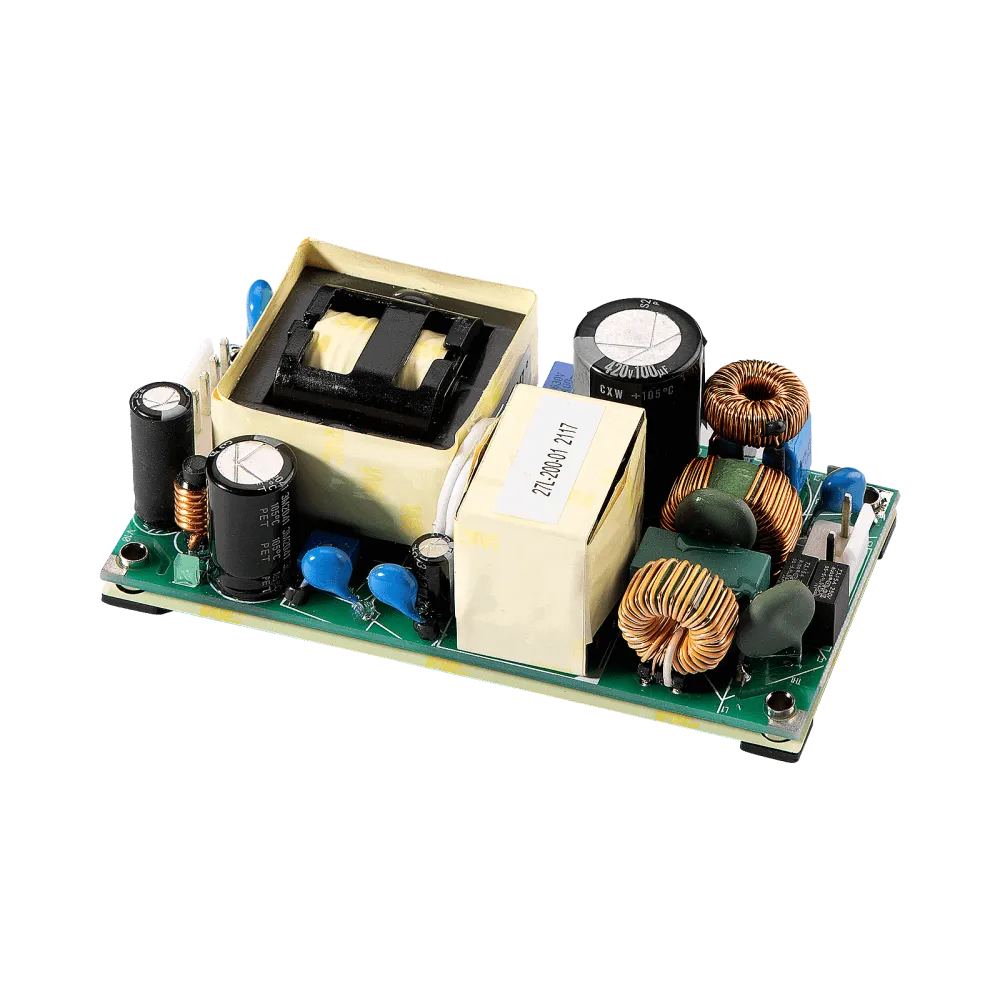

Cincon’s CFM202S series is a high-power density ITE AC/DC open-frame power supply which is compatible with both Class I and Class II and offers up to 200W of power with a dimension of 2×4 inches (50.8×101.6mm). It has IEC/UL/EN62368-1 and IEC/EN60335-1 safety approvals.
Version B with baseplate cooling
Technical data
- Universal Input Range 90… 264Vac
- High Efficiency Level up to 94%
- Active PFC Function
- 2 "x 4" Open Frame compact size
- 150 Watt with Natural Convection
- 200 Watt with Fan cooled
- No load Input Power Consumption <150mW
- Continuous Short Circuit Protection
- Operating Altitude 5000m
- Safety Approvals IEC/EN/UL62368-1 and IEC/EN60335-1
- EMI Safety Meets Class I and Class II
Product specifications
| Output voltage (VDC) | 56 V |
| Manufacturer | Cincon |
| Manufacturer warranty | 3 years |
| Height | 33.2 mm |
| Width | 50.8 mm |
| Length | 101.6 mm |
| Protection class | Class I, Class II |
| Standard size | 2 x 4 inches |
| Application | Household, ITE/AV |
| Power | 200 W |
| Efficiency | 94.00% |
