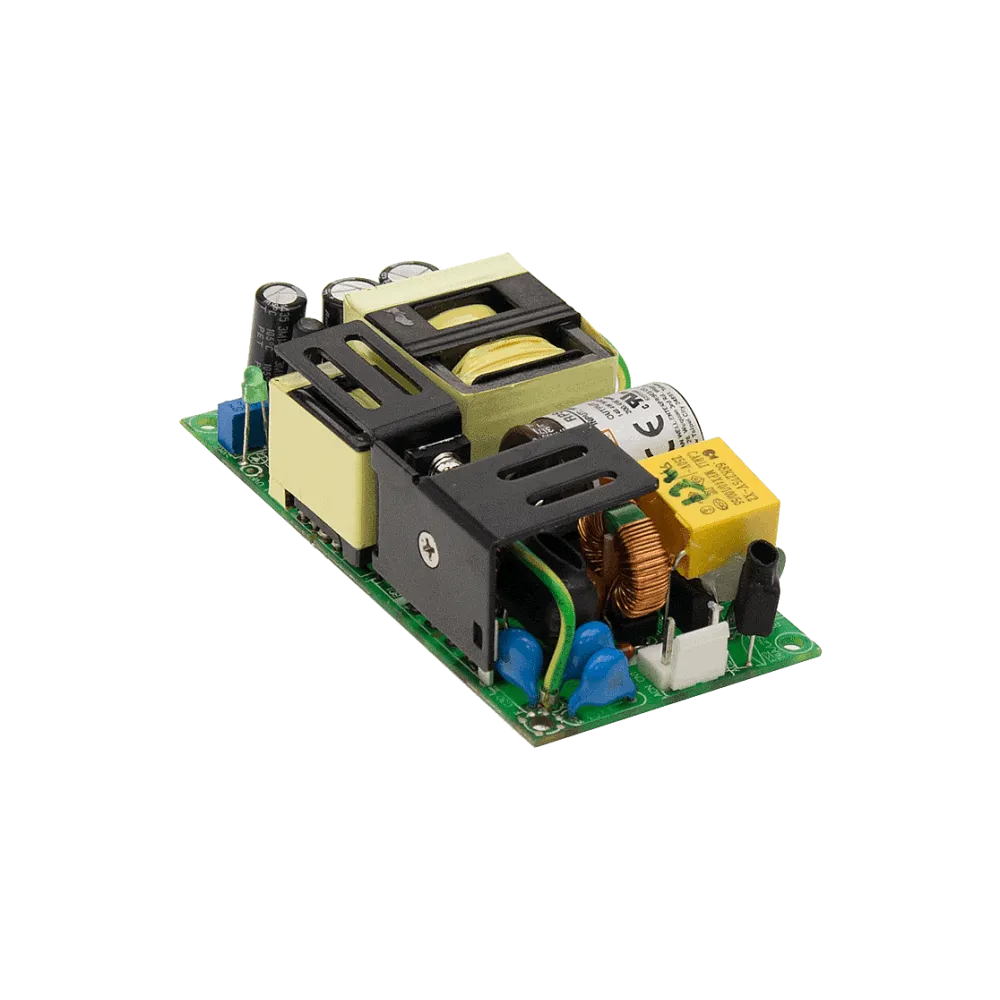

200W Medical Open Frame Power Supply 15V/13.4A

RPS-200 is a 200W highly reliable green PCB type medical power supply with a high power density on the 4by 2 footprint. It accepts 80 to 264Vac input and offers various output voltages between 12V and 48V. The working efficiency is up to 95% and the extremely low no load power consumption is down belo 0.5W. RPS-200 is able to be used for both Class I (with FG) and Class II (no FG) system design. The extremely low leakage current is less than 130µA. In addition, it conforms to the international medical regulations (2*MOPP) and EMC BS EN55011, perfectly fitting all kinds of BF rated "patient contact" medical system equipment.

Technical data

• Universal AC input 80 to 264Vac
• 200W power with 10CFM forced ventilation
• 140W power with convection
• No load power consumption <0.5W
• 2x MOPP (Isolation: primary to secondary)
• Suitable for BF application with appropriate system consideration
• Protection: short circuit, overload, overvoltage and overtemperature
• Dimension 101.6 x 50.8 x 29mm (L x W x D)
