About the product

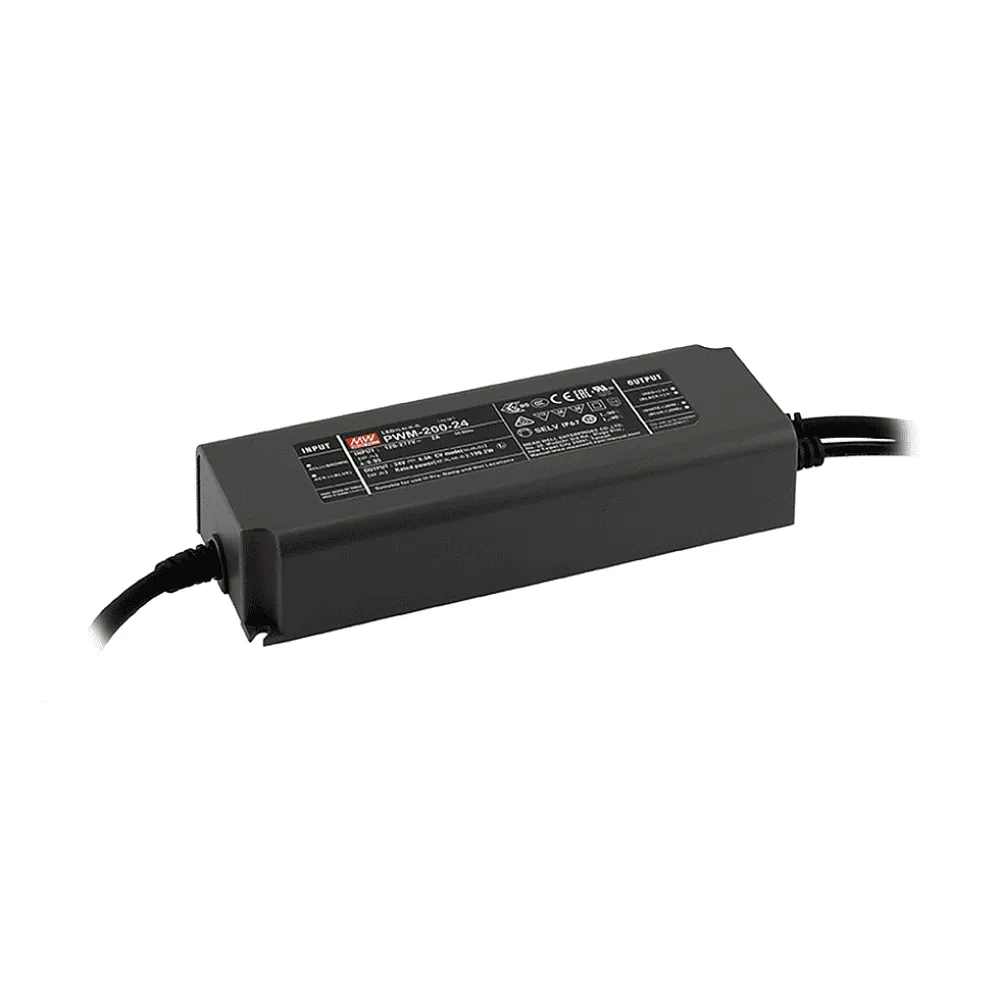

PWM-200 series is an AC/DC LED driver featuring the constant voltage mode with PWM style output which is able to maintain the color temperature and the brightness homogeneity when driving all kinds of LED strips. The light can be controlled via 3in1 dimming (0-10V, 10V PWM signal and resistance.
Technical data
- Universal AC input 100 to 305Vac
- Constant voltage output
- PWM style dimming with frequency 4kHz
- Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
- No load power consumption 0.5W
- Fully isolated plastic case with IP67 level
- Class II power unit, without FG
- Dimension 195 x 68 x 39.5mm (L x W x H)
- 5 years warranty
Product specifications
| Output voltage (VDC) | 48 V |
| Manufacturer warranty | 5 years |
| Product series | PWM |
| Input voltage range (VAC) | 110-277 V |
| Additional functions | EL mark |
| Connection | Cable |
| IP protection | IP67 |
| Height | 39.5 mm |
| Width | 68 mm |
| Length | 195 mm |
| Application | Single color |
| Dimming method | PWM |
| Control | Resistor, 0-10V, 1-10V, PWM control signal |
| Channels | 1 |
| Output current | 4.17 A |
| Power | 200 W |
| Manufacturer | MEAN WELL |
