About the product

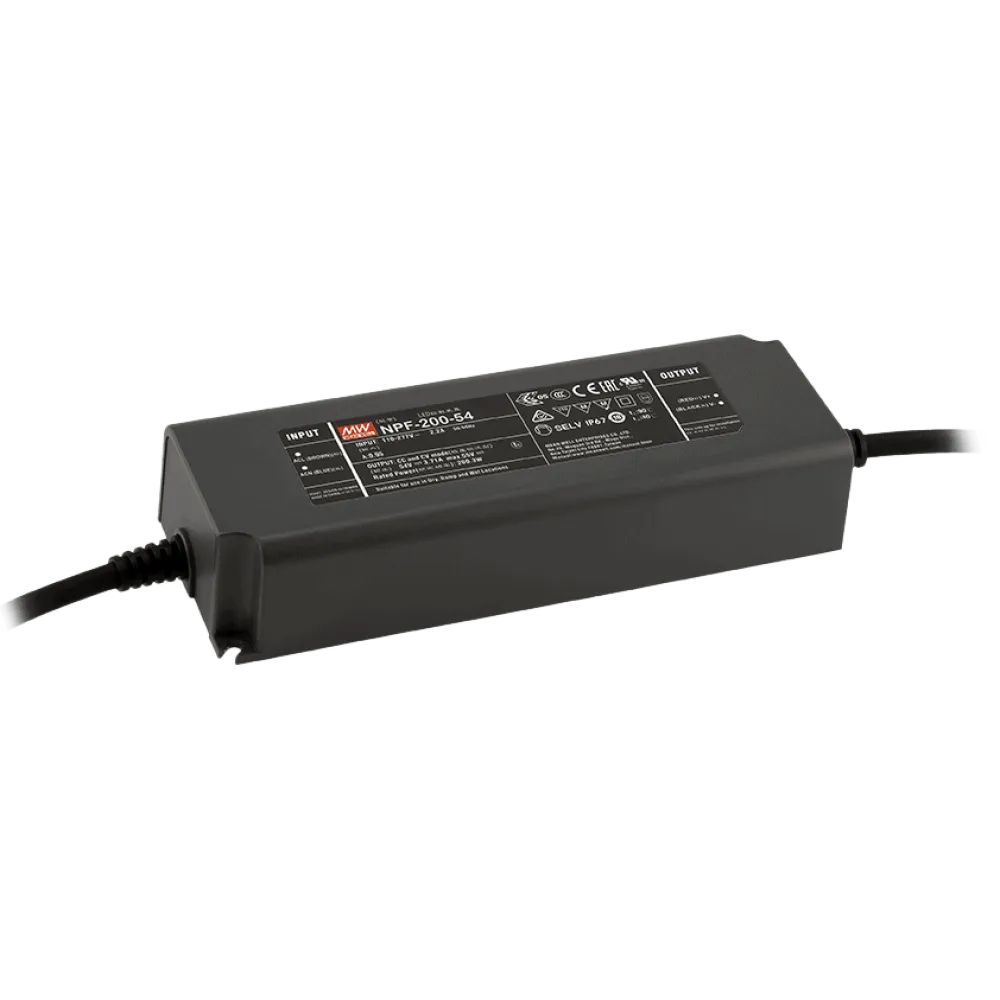

NPF-200 series is an highly efficient AC/DC LED driver featuring the constant voltage and constant current mode.
Technical data
- Universal AC input 100 to 305Vac
- Constant voltage and Constant current mode
- Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
- No load power consumption 0.5W
- Fully isolated plastic case with IP67 level
- Class II power unit, without FG
- Dimension 195 x 68 x 39.5mm (L x W x H)
- 5 years warranty
Product specifications
| Output voltage (VDC) | 36 V |
| Manufacturer warranty | 5 years |
| Product series | NPF |
| Input voltage range (VAC) | 100-277 V |
| Additional functions | EL mark |
| Connection | Cable |
| IP protection | IP67 |
| Height | 39.5 mm |
| Width | 68 mm |
| Length | 195 mm |
| Application | Single color |
| Control | Non-dimmable |
| Channels | 1 |
| Output current | 5.55 A |
| Power | 200 W |
| Manufacturer | MEAN WELL |
