About the product

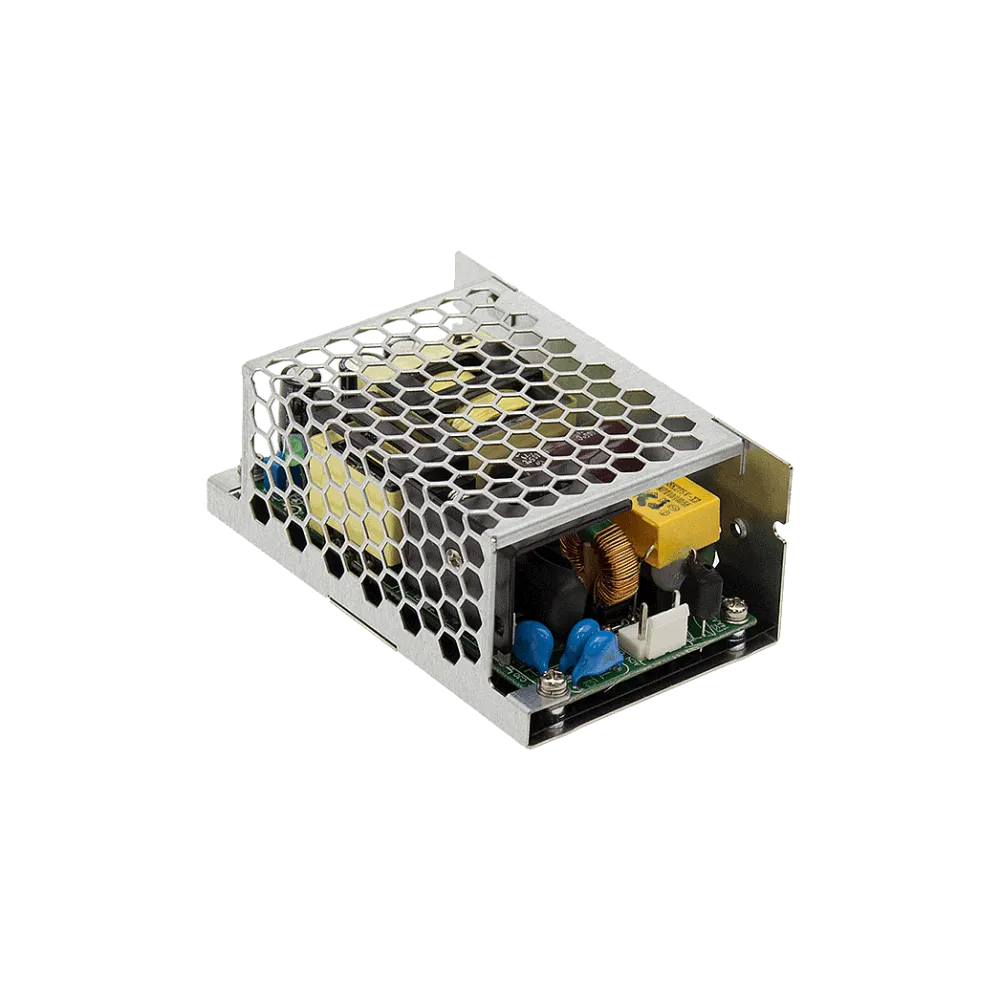

200W Enclosed Medical Power Supply 48V/4.2A
Technical data
- Universal AC input 80 to 264Vac
- 200W power with 10CFM forced ventilation
- 140W power with convection
- No load power consumption <0.5W
- 2x MOPP (Isolation: primary to secondary)
- Suitable for BF application with appropriate system consideration
- Protection: short circuit, overload, overvoltage and over temperature
- Dimension 103.4 x 62 x 40mm (L x W x D)
- 3 years warranty
- Manufacturer MEAN WELL
Product specifications
| Output voltage (VDC) | 48 V |
| Manufacturer warranty | 3 years |
| Manufacturer | MEAN WELL |
| Additional functions | 12 V DC auxiliary output |
| Application | Household, Medical |
| Voltage setting range | 45.6-50.4 VDC |
| Height | 40 mm |
| Width | 62 mm |
| Length | 103.4 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 80-264 V |
| Power | 144 W |
| Efficiency | 95.00% |
