About the product

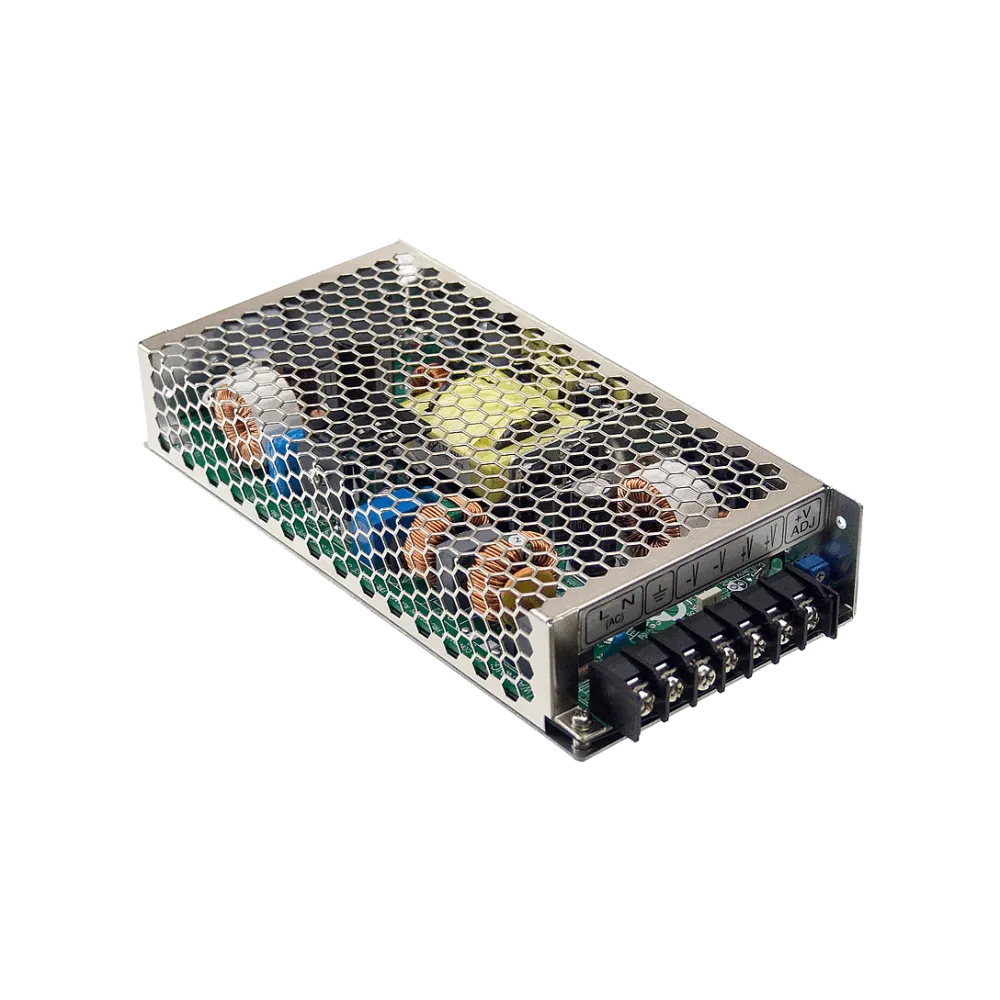

200W Enclosed Medical Power Supply 12V/16.7A
Technical data
- Universal AC input 85 to 264Vac
- Built-in active PFC function
- No load power consumption 0.5W
- Medical safety approved (MOOP level)
- Low leakage current ≤300µA
- Remote Sense function
- Built-in Remote On/Off function
- Standby 5V/0.3A
- Working temperature range -40°C to +70°C
- Withstand 300Vac surge input for 5 sec.
- Dimension 199 x 98 x 38mm (L x W x H)
- 5 Years Warranty
- Manufacturer MEAN WELL
Product specifications
| Output voltage (VDC) | 12 V |
| Manufacturer warranty | 5 years |
| Manufacturer | MEAN WELL |
| Control signals | Remote ON/OFF, Remote sense |
| Additional functions | 5V DC auxiliary output |
| Application | Medical |
| Voltage setting range | 10.2-13.8 VDC |
| Height | 38 mm |
| Width | 98 mm |
| Length | 199 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 85-264 V |
| Power | 200 W |
| Efficiency | 88.00% |
Data sheets
