About the product

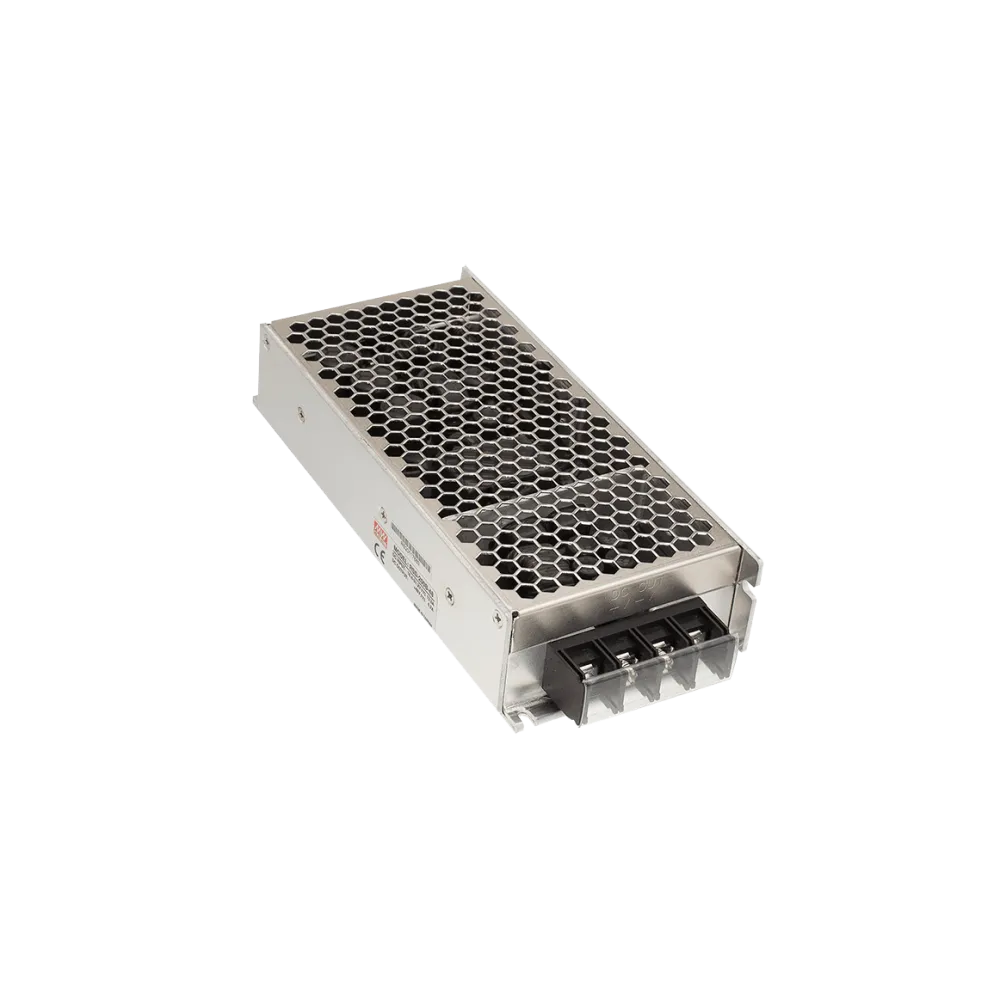

200W DC/DC Converter, Input 33.6…62.4V, Output 12V/16.7A
Technical data
- 2:1 wide input range
- 4000Vdc I/O Isolation
- Cooling by free air convection
- Half encapsulated
- Built-in Constant Current Limiting
- Compliance to EN50155 and EN45545-2 railway standard
- All using 105°C long life electrolytic capacitors
- Dimension 191 x 86 x 40mm (L x B x H)
Product specifications
| Output voltage (VDC) | 12 V |
| Manufacturer | MEAN WELL |
| Application | ITE/AV, Railway |
| Height | 40 mm |
| Width | 86 mm |
| Length | 191 mm |
| I/O isolation | 4000 V DC |
| Input voltage ratio | N/A |
| Input voltage range (VDC) | 33.6-62.4 V |
| Nominal input voltage (VDC) | 36-48 V |
| Output current | 16700 mA |
| Power | 200 W |
| Manufacturer warranty | 3 years |
