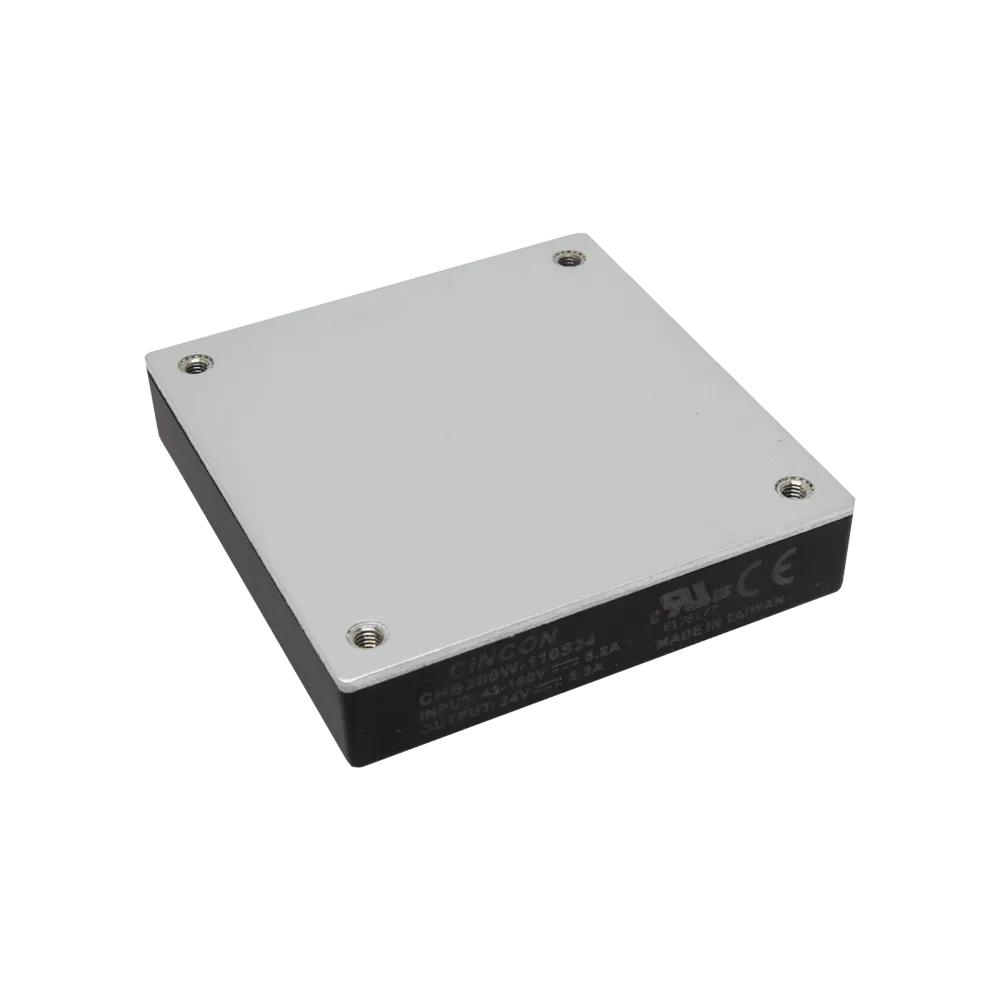

200W DC/DC-Converter, Input 14…160V, Output 15V/13.5A
Technical data
- Half Brick Size Meet Industrial Standard 2.28’’×2.40’’x0.50’’
- Fixed Switching Frequency
- Regulated Outputs
- Efficiency 90%
- 3000Vac I/O Isolation
- Operating Case Temperature -40°…+100°C
- Protection: Over Current/Over Voltage/Over Temperature/Under Voltage Lockout
- Remote ON/OFF
- CB Test Certificate IEC62368-1
- EN50155 Compliant with External Circuits
- UL62368-1 2nd Approval (Reinforce Insulation)
- Shock & Vibration EN50155 (EN61373) compliant
- Fire & Smoke EN45545-2 compliant
- Operating Altitude 5000m
Product specifications
| Output voltage (VDC) | 15 V |
| Manufacturer | Cincon |
| Application | ITE/AV, Railway |
| Height | 12.7 mm |
| Width | 61 mm |
| Length | 57.9 mm |
| Package / case | Halfbrick |
| Additional functions | Parallel connectable, Remote ON/OFF, Remote sense, Voltage Trim |
| Regulation | Regulated |
| I/O isolation | 3000 V DC |
| Input voltage ratio | N/A |
| Input voltage range (VDC) | 14-160 V |
| Nominal input voltage (VDC) | 15-110 V |
| Output current | 13500 mA |
| Power | 200 W |
| Manufacturer warranty | 3 years |
