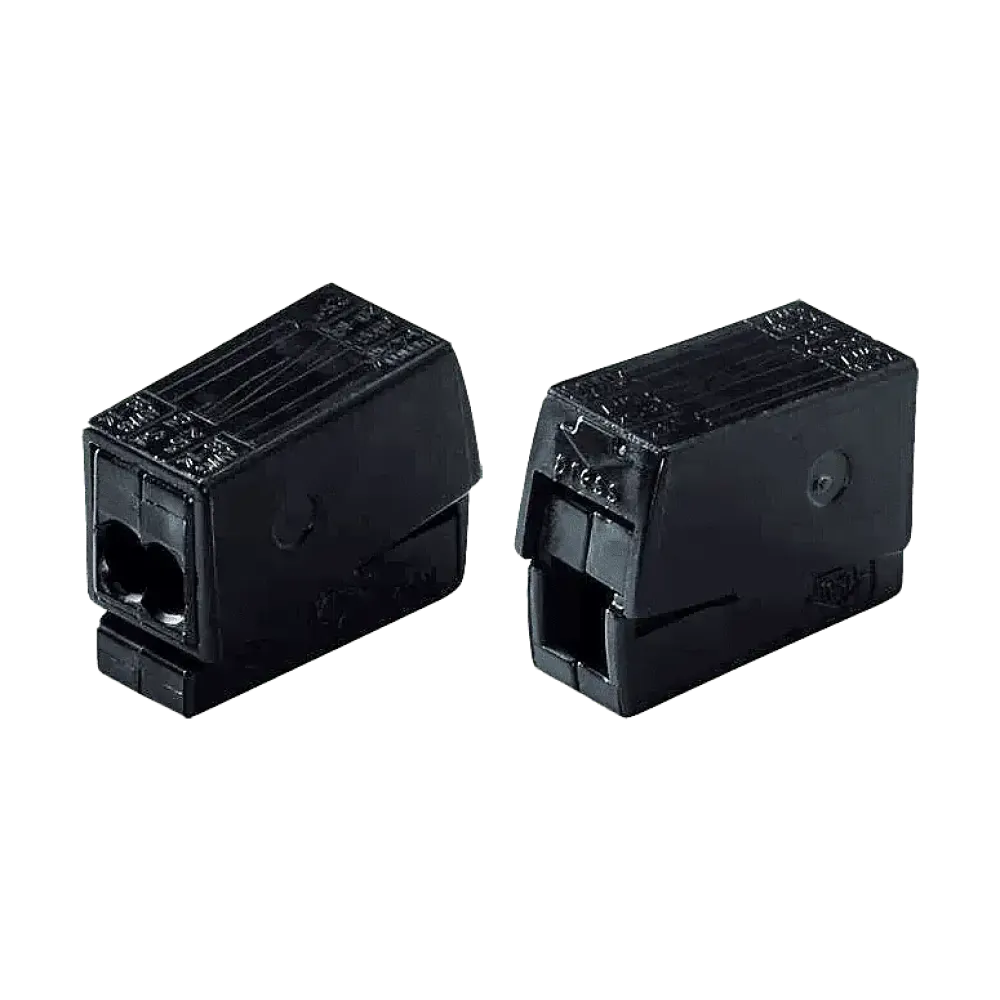

2-wire light terminal

2-wire luminaire terminal block; push-button luminaire side; luminaire side: for all conductor types; inst. side: for solid conductors; 224 series; max. 2.5 mm²; ambient temperature max. 75 °C; 2.50 mm²; black
. PU: 100pcs.

Technical data

Rated data according to EN 60664
. Rated voltage (II / 2) 400V
. Rated impulse voltage (II / 2) 4kV
. Rated current 24A
. Rated data (II / 2) ≙ Overvoltage category II / pollution degree 2
. Terminal points 3
. Total number of potentials 1

Connection type 1 Installation side
. Connection technology PUSH WIRE®
. Number of connection points 2
. Actuation type Push-in
. Single-wire conductor 1 .. 2.5mm² / 16 .. 14AWG
. Stripping length 9 .. 11mm / 0.35 .. 0.43inch

Connection type 2 Luminaire side
. Connection technology 2 CAGE CLAMP®
. Number of connection points 2 1
. Solid conductor 2 0.5 .. 2.5mm² / 20 .. 14AWG
. Fine-stranded conductor 2 0.5 .. 2.5mm² / 20 .. 16AWG
