About the product

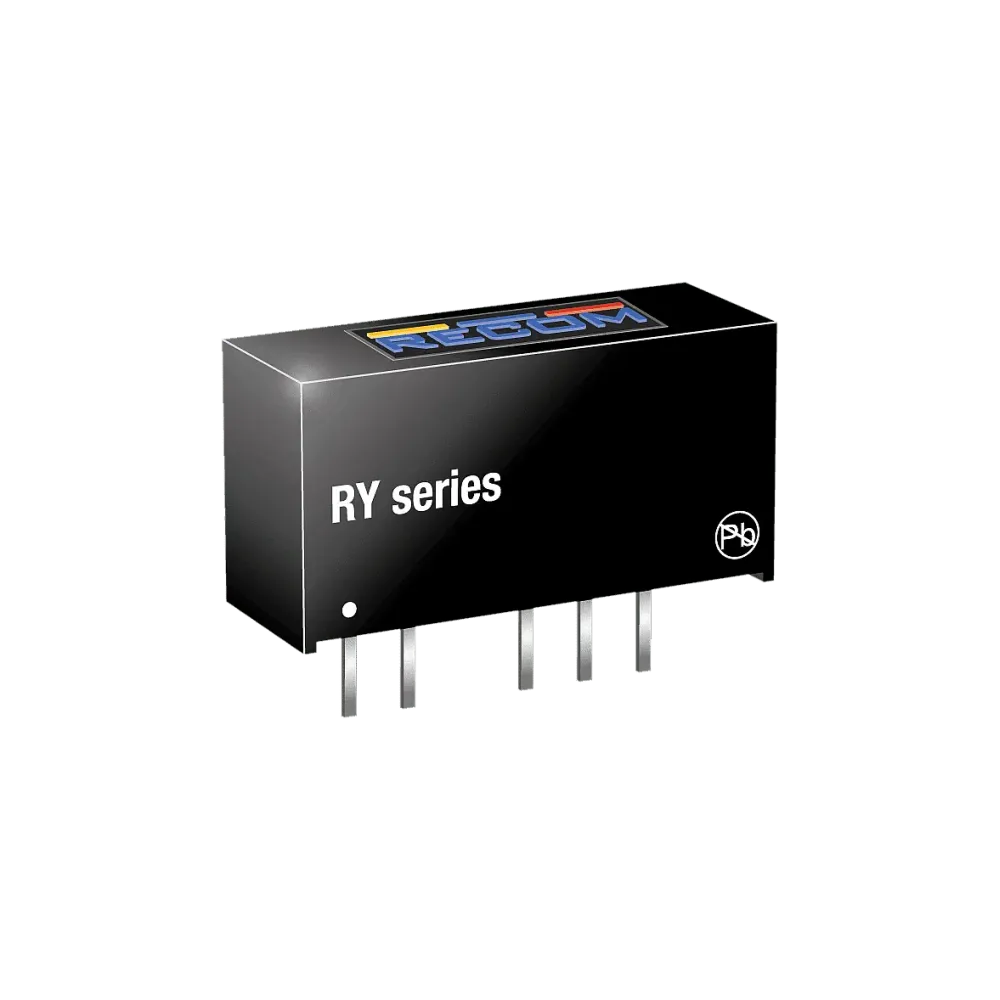

The RY series DC/DC converter is a cost-effective isolated general purpose converter with a built-in linear regulator that provides a regulated, load-independent output. It is available with one or two outputs. A useful feature is the CTRL pin on the single output version, which allows the converter to be adjusted or controlled by an external enable signal.
Technical data
- On/Off pin
- 1kVDC insulation
- UL94V-0 Housing material
- Optionally with permanent short-circuit protection
- Internal linear regulator
- Efficiency up to 70 %
- Adjustable output voltage
Product specifications
| Manufacturer | Recom |
| I/O isolation | 1000 VDC |
| Length | 19.65 mm |
| Width | 7.05 mm |
| Height | 10.2 mm |
| Output current | 200000 mA |
| Regulation | Regulated |
| Input voltage ratio | +/-10 % |
| Nominal input voltage (VDC) | 5 V |
| Power | 1 W |
| Output voltage (VDC) | 5 V |
| Design | SIP7 |
