About the product

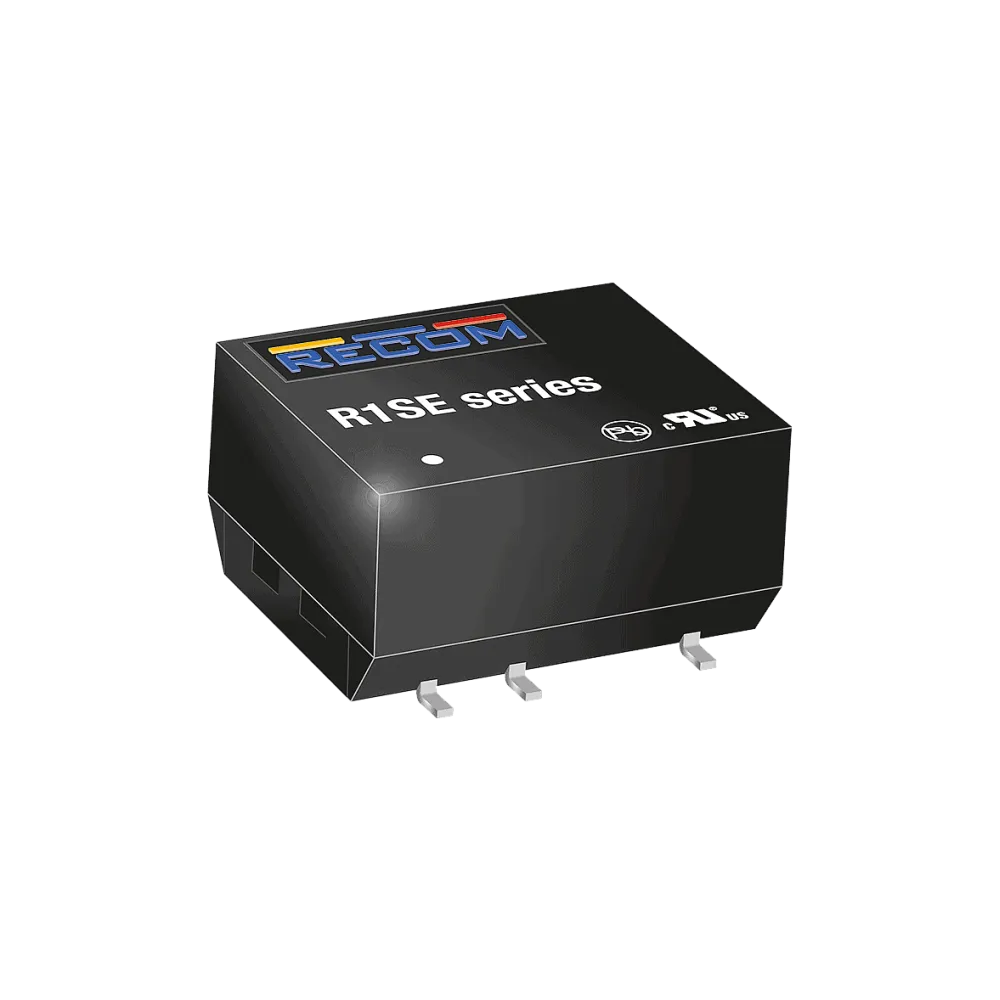

The R1SE series are 1W unregulated DC/DC converters that are lower cost than equivalent converters. The benefits of high volume production and semi-automatic assembly allow for a lower selling price without sacrificing our high quality standards. They are UL certified for safety, offer reasonable efficiency and operating temperature range of -40° to +85°C.
Technical data
- 1:1 input range
- SMD package
- Efficiency up to 75%
- 1kVDC/1s isolation
- Wide operating temperature range from -40°C to +85°C at full load
- UL/EAC certified
Product specifications
| Output voltage (VDC) | 5 V |
| Temperature range | -40°C to 85°C |
| Manufacturer | Recom |
| Application | ITE/AV |
| Height | 6.7 mm |
| Width | 10.7 mm |
| Length | 12.75 mm |
| Package / case | SMD |
| Regulation | Unregulated |
| I/O isolation | 1000 V DC |
| Input voltage ratio | +/-10 % |
| Input voltage range (VDC) | 4.5-5.5 V |
| Nominal input voltage (VDC) | 5 V |
| Output current | 200000 mA |
| Power | 1 W |
| Efficiency | 75.00% |
