About the product

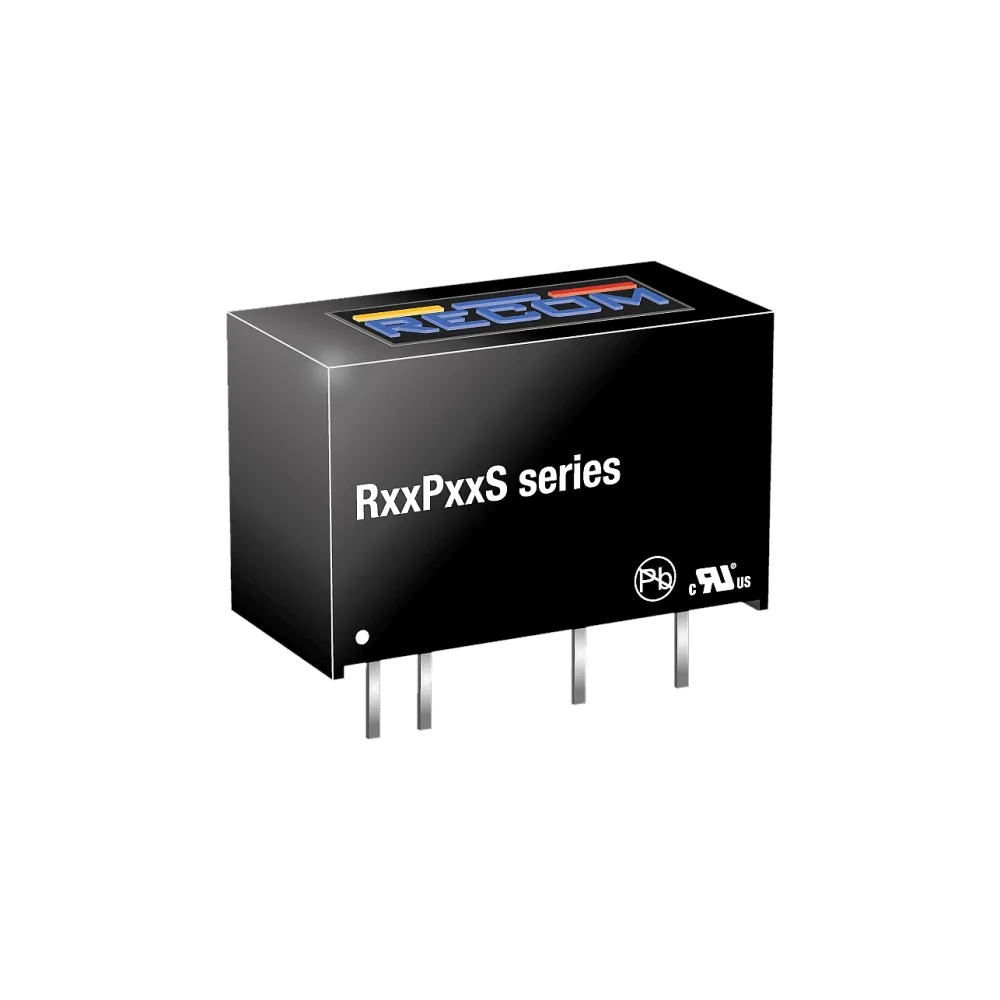

The RxxPxxS_D Series of DC/DC Converters are certified to UL/CSA60950-1 as well as EN60950-1. This makes them ideal for safety applications where approved isolation is required.
Technical data
- UL/CSA and IEC/EN safety certified
- High isolation 6.4kVDC
- Optional continuous short circuit protection
- /X2 version with >9mm input/output clearance
- Suitable for IGBT applications
Product specifications
| Output voltage (VDC) | 5 V |
| Temperature range | -40°C to 90°C |
| Manufacturer | Recom |
| Application | ITE/AV, Medical |
| Height | 12.5 mm |
| Width | 9.8 mm |
| Length | 19.5 mm |
| Package / case | SIP7 |
| Regulation | Unregulated |
| I/O isolation | 3200 V DC |
| Input voltage ratio | +/-10 % |
| Input voltage range (VDC) | 4.5-5.5 V |
| Nominal input voltage (VDC) | 5 V |
| Output current | 200000 mA |
| Power | 1 W |
| Efficiency | 70.00% |
