About the product

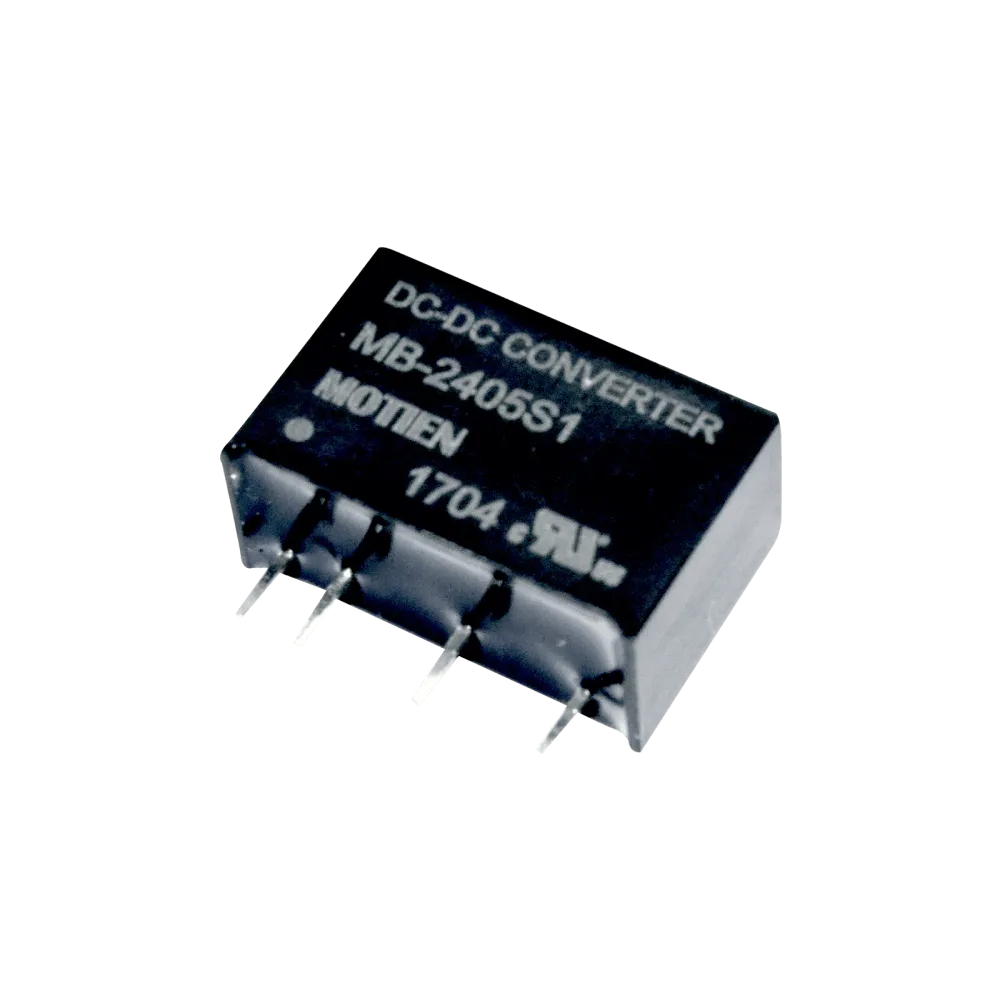

1W DC/DC-Converter, Input 36…75V, Output +/-15V / +/-0.033A
Technical data
- 6 Pin SIL Package, Full SMD Technology inside
- Wide 2:1 Input Range
- 1500Vdc Isolation
- Fully regulated Output
- No minimum load required
- Continuous short circuit protection
- Efficiency up to 81%
- Low Ripple and Noise
- Operating Temperature range -40°C to +85°C
- Dimension 17 x 7.62 x 11mm (L x W x H)
- 3 years warranty
- Manufacturer Motien
Product specifications
| Output voltage (VDC) | 15 V |
| Manufacturer | Motien |
| Application | ITE/AV |
| Height | 7.62 mm |
| Width | 10.5 mm |
| Length | 17 mm |
| Package / case | SIP6 |
| Regulation | Regulated |
| I/O isolation | 1500 V DC |
| Input voltage ratio | N/A |
| Input voltage range (VDC) | 36-75 V |
| Nominal input voltage (VDC) | 48-72 V |
| Output current | 34000 mA |
| Power | 1 W |
| Manufacturer warranty | 3 years |
Data sheets
