About the product

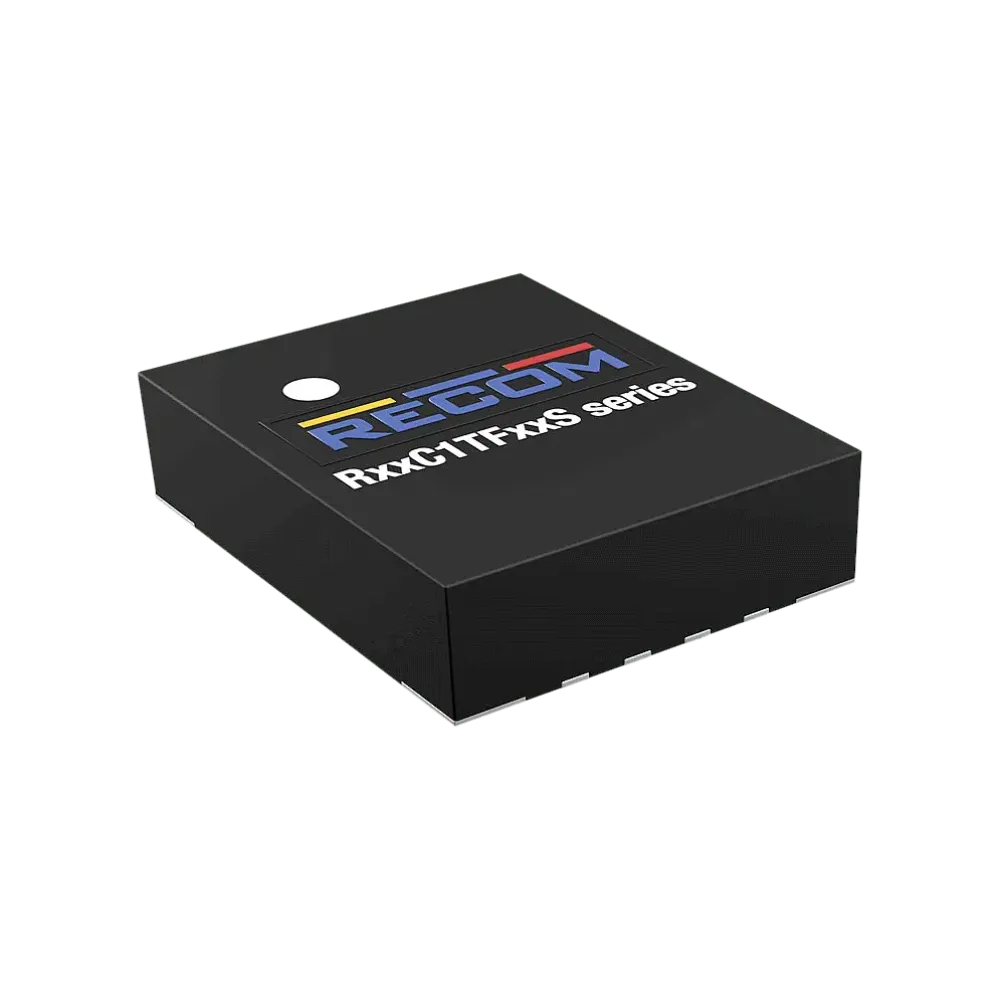

The RxxC1TFxxS series is the latest breakthrough in isolated DC/DC converters. With an ultra-compact 5 x 4mm SMD package and a low profile of just 1.18mm, it sets a new standard for size and performance in its class. With 3kVAC/1s isolation and selectable 3.3V or 5V outputs, it is perfect for applications such as COM port isolation, industrial automation, IoT and sensor isolation. With a wide input range from 3V to 5.5V and an ambient temperature range of up to 125°C with derating, it ensures reliability in different environments. The RxxC1TFxxS series simplifies design with its integrated solution and is your compact, reliable choice for demanding electronic systems.
Technical data
- Compact 10.35 x 7.5 mm SMD housing
- Low profile (2.5 mm)
- 3kVDC/1min Insulation
- Low EMI emissions
- Ultra-wide temperature range from -40°C to +125°C
- Fully automatic, highly reliable design
- Semi-regulated 5V output
Product specifications
| Manufacturer | Recom |
| I/O isolation | 3000 VAC |
| Height | 1.18 mm |
| Output voltage (VDC) | 3.3-5 V |
| Width | 4 mm |
| Nominal input voltage (VDC) | 3.3-5 V |
| Length | 5 mm |
| Output current | 200000 mA |
| Regulation | Regulated |
| Power | 1 W |
| Application | ITE/AV |
| Design | LGA |
