About the product

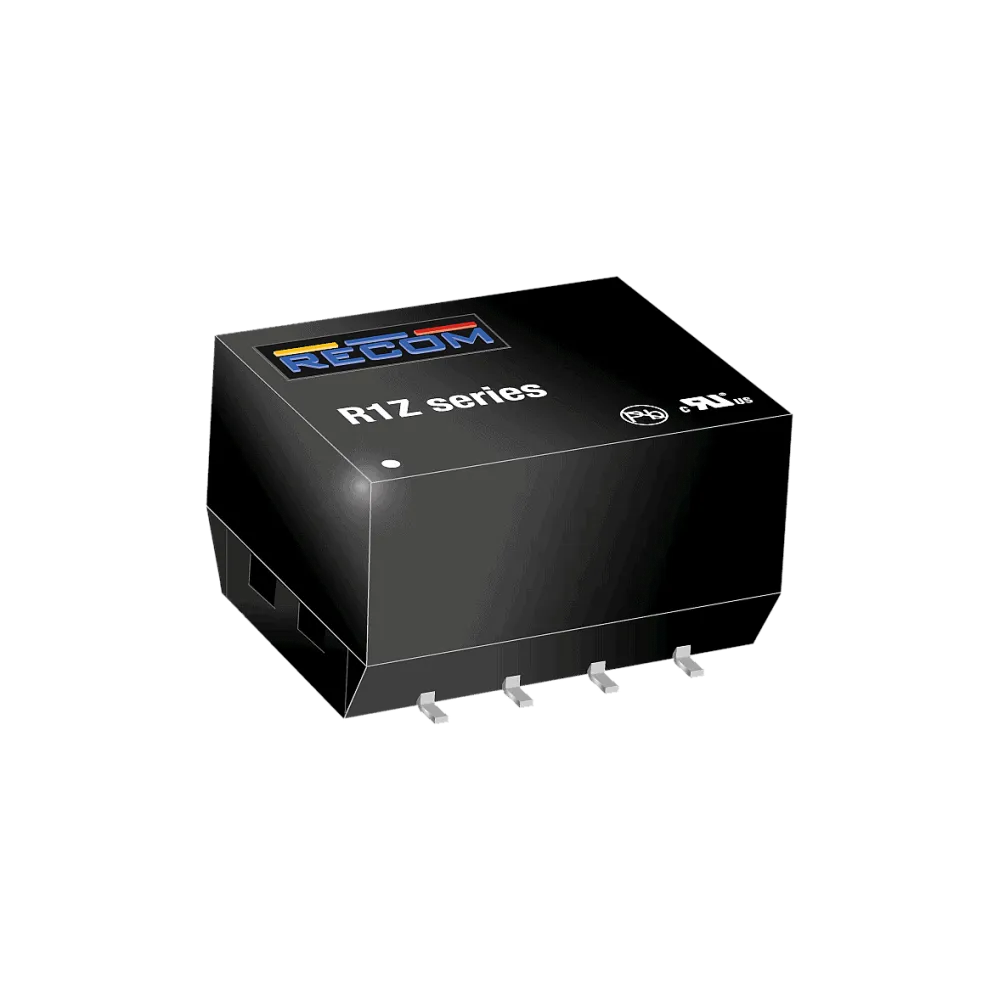

The R1Z series DC/DC converter has been designed for isolating or converting DC power rails where an SMD format with regulated output is required, although it is no larger than a standard unregulated SMD converter.
Technical data
- 1kVDC/1s or 2kVDC/1s isolation
- SMD package style
- UL94V-0 package material
- Optional continuous short circuit protection
- Toroidal magnetics
Product specifications
| Output voltage (VDC) | 5 V |
| Temperature range | -40°C to 70°C |
| Manufacturer | Recom |
| Application | ITE/AV, Medical |
| Height | 8.7 mm |
| Width | 10.7 mm |
| Length | 15.24 mm |
| Package / case | SMD |
| Regulation | Regulated |
| I/O isolation | 1000 V DC |
| Input voltage ratio | +/-10 % |
| Input voltage range (VDC) | 4.75-5.25 V |
| Nominal input voltage (VDC) | 5 V |
| Output current | 200000 mA |
| Power | 1 W |
| Efficiency | 60.00% |
