About the product

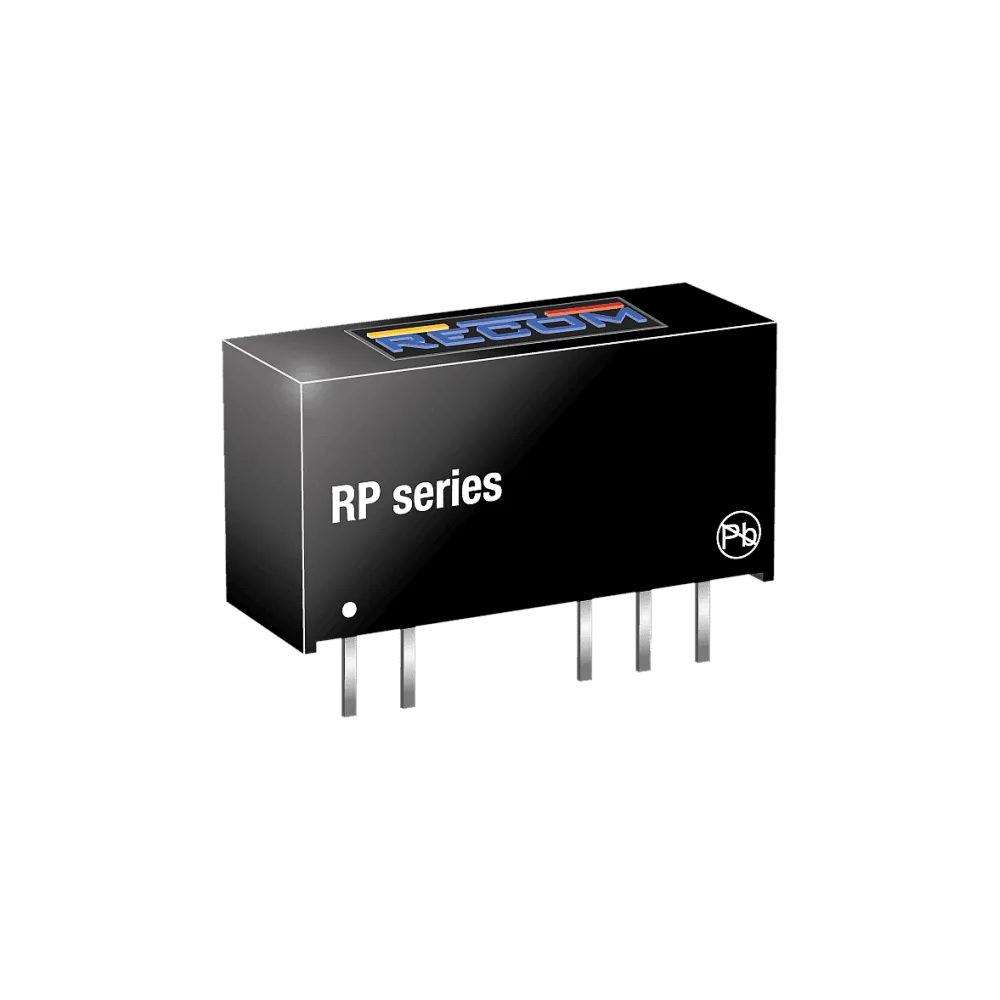

The RP series has very high isolation of 5.2kVDC in a compact size. The converters are suitable for IGBT driver applications.
Technical data
- Pot-core transformer – separated windings
- High 5.2kVDC/1s basic isolation in compact size
- Efficiency up to 82 %
- Pin compatible with RH and RK series
- Suitable for IGBT applications
- IEC/EN/UL/CSA 60950-1 certified
Product specifications
| Output voltage (VDC) | 5 V |
| Manufacturer | Recom |
| Application | ITE/AV |
| Height | 10.2 mm |
| Width | 7.05 mm |
| Length | 19.65 mm |
| Package / case | SIP7 |
| Regulation | Unregulated |
| I/O isolation | 5200 V DC |
| Input voltage ratio | +/-10 % |
| Input voltage range (VDC) | 21.6-26.4 V |
| Nominal input voltage (VDC) | 24 V |
| Output current | 200000 mA |
| Power | 1 W |
| Temperature range | -40°C to 85°C |
