About the product

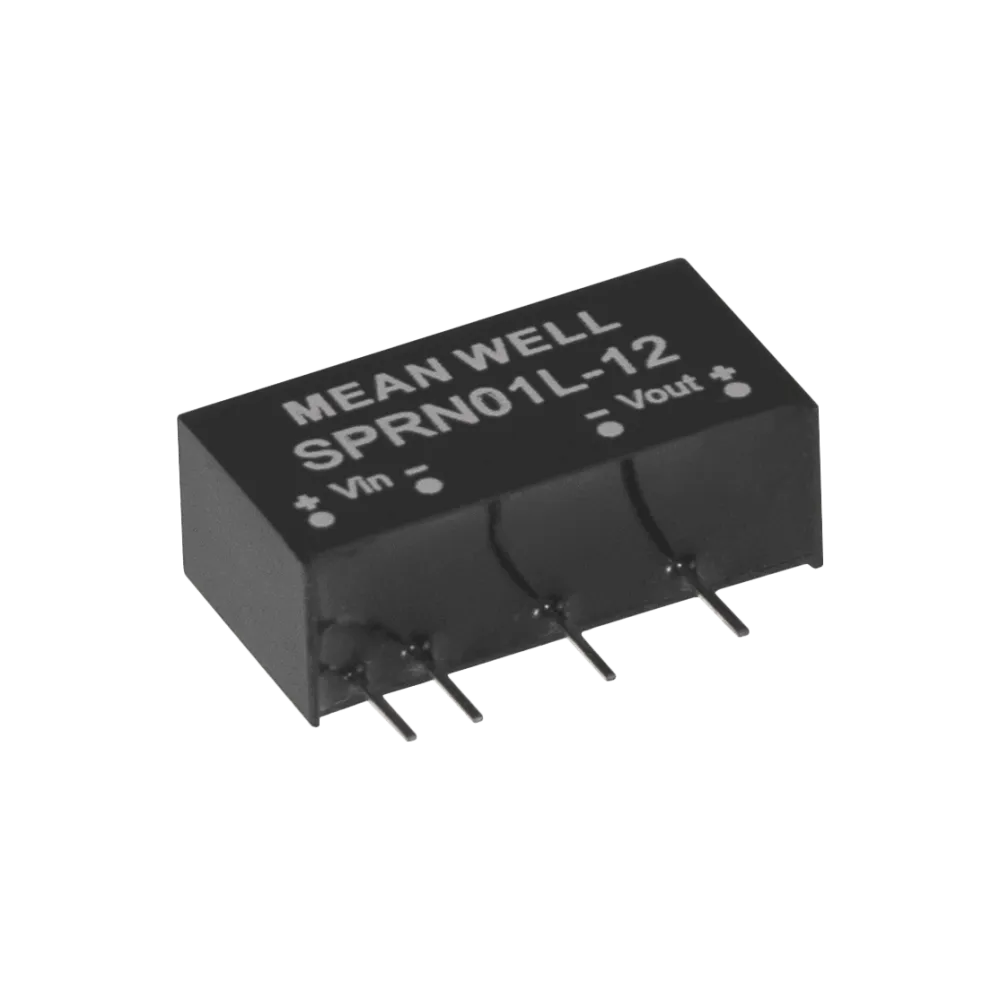

1W DC/DC-Converter, Input22.8…26.4V, Output 12V/0.084A
Technical data
- SIP6 package with industry standard pinout
- Operating temperature range -40°…+90°C
- Comply to EN55032 radiated class B without additional components
- Protection: Short circuit
- 1500kVdc I/O Isolation
- Low cost
- 3 years warranty
- Manufacturer Mean Well
Product specifications
| Output voltage (VDC) | 12 V |
| Manufacturer | MEAN WELL |
| Application | ITE/AV |
| Height | 10.14 mm |
| Width | 7.1 mm |
| Length | 19.6 mm |
| Package / case | SIP6 |
| Regulation | Regulated |
| I/O isolation | 1500 V DC |
| Input voltage ratio | +/-10 % |
| Input voltage range (VDC) | 22.8-26.4 V |
| Nominal input voltage (VDC) | 24 V |
| Output current | 84000 mA |
| Power | 1 W |
| Manufacturer warranty | 3 years |
