About the product

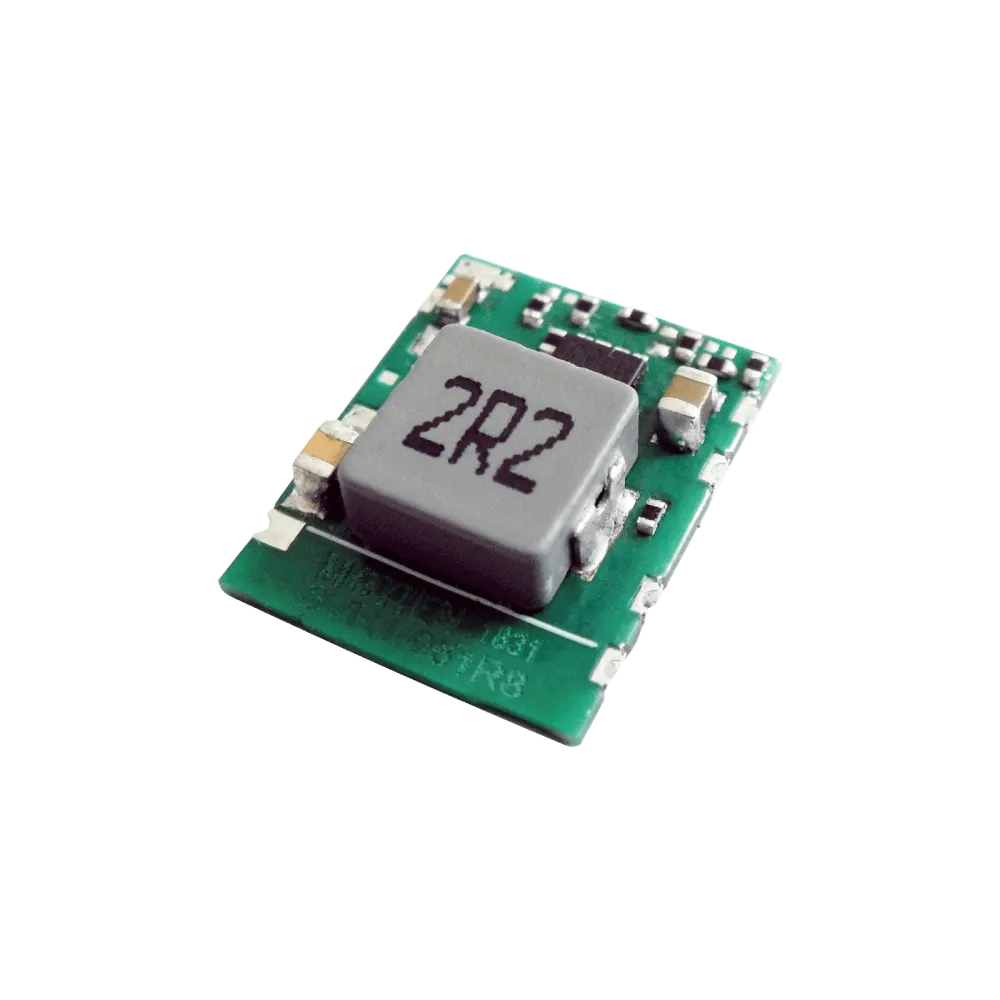

1A DC/DC-Converter, Input 4.75…36V, Output 3.3V
Technical data
- SMD Package and full SMD Technology
- Efficiency 96%
- Non Isolated Regulator with very low standby current
- Low Ripple & Noise
- Excellent Line/Load Regulation
- Adjustable Output Voltage
- Continuous Short Circuit Protection
- Remote ON/OFF Control
- 3 Years Warranty
- Manufacturer Motien
Product specifications
| Output voltage (VDC) | 3.3 V |
| Manufacturer | Motien |
| Application | ITE/AV |
| Height | 3.6 mm |
| Width | 11.8 mm |
| Length | 15.2 mm |
| Package / case | SMD10 |
| Additional functions | Remote ON/OFF, Voltage Trim |
| Regulation | Unregulated |
| I/O isolation | Non isolated |
| Input voltage ratio | N/A |
| Input voltage range (VDC) | 4.75-36 V |
| Nominal input voltage (VDC) | 5-24 V |
| Output current | 1000 mA |
| Power | 3.3 W |
| Manufacturer warranty | 3 years |
