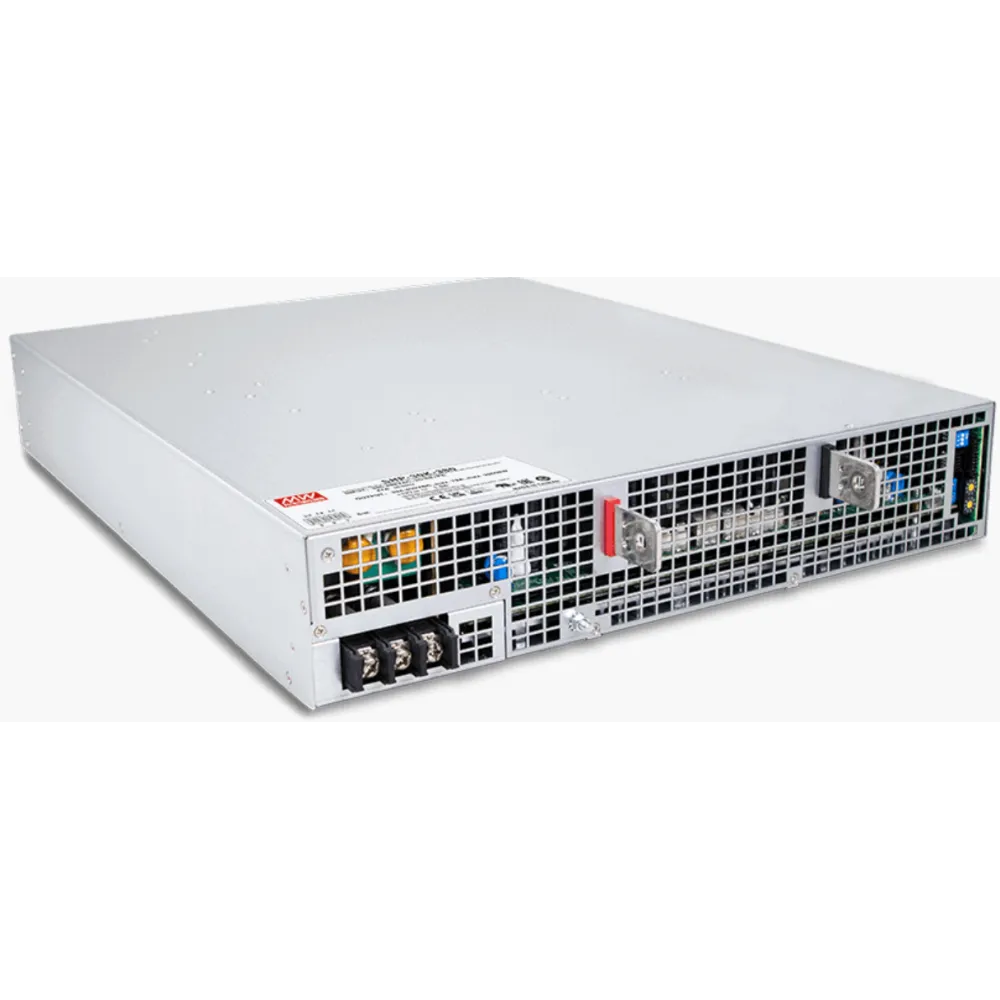

19kW 3-Phase Power Supply 55V/346A

SHP-30K-55 is a digital 19kW power supply unit with 3-phase input. The power supply can be operated in the 3-phase network without neutral conductor. Numerous additional functions such as programmable output, remote ON/OFF, auxiliary voltages, CANBus interface facilitate integration into the overall system.

The built-in currrent sharing function allows to connect up to 12 SHP-30K in parallel to get a higher power.

Technical data

• Three-phase input voltage range 340 to 530Vac, 3-wire / delta connection or star connection
• Remote On/Off functions integrated
• Auxiliary circuit 12V/0.1A
• Output voltage can be trimmed between 50 – 120% by external control signal
• Output current can be trimmed between 1 – 100% by external control signal
• Current sharing with up to 12 units up to 228kW
• Alarm signal outputs (relay contact and open collector signal): AC fail, DC OK, fan fail, OTP
• CANBus interface for monitoring and control integrated
• Air cooling with integrated speed controlled DC fan
• Operating temperature range from -30°C to +70°C
• Dimensions 540 x 424 x 83.5mm (L x W x H)
