About the product

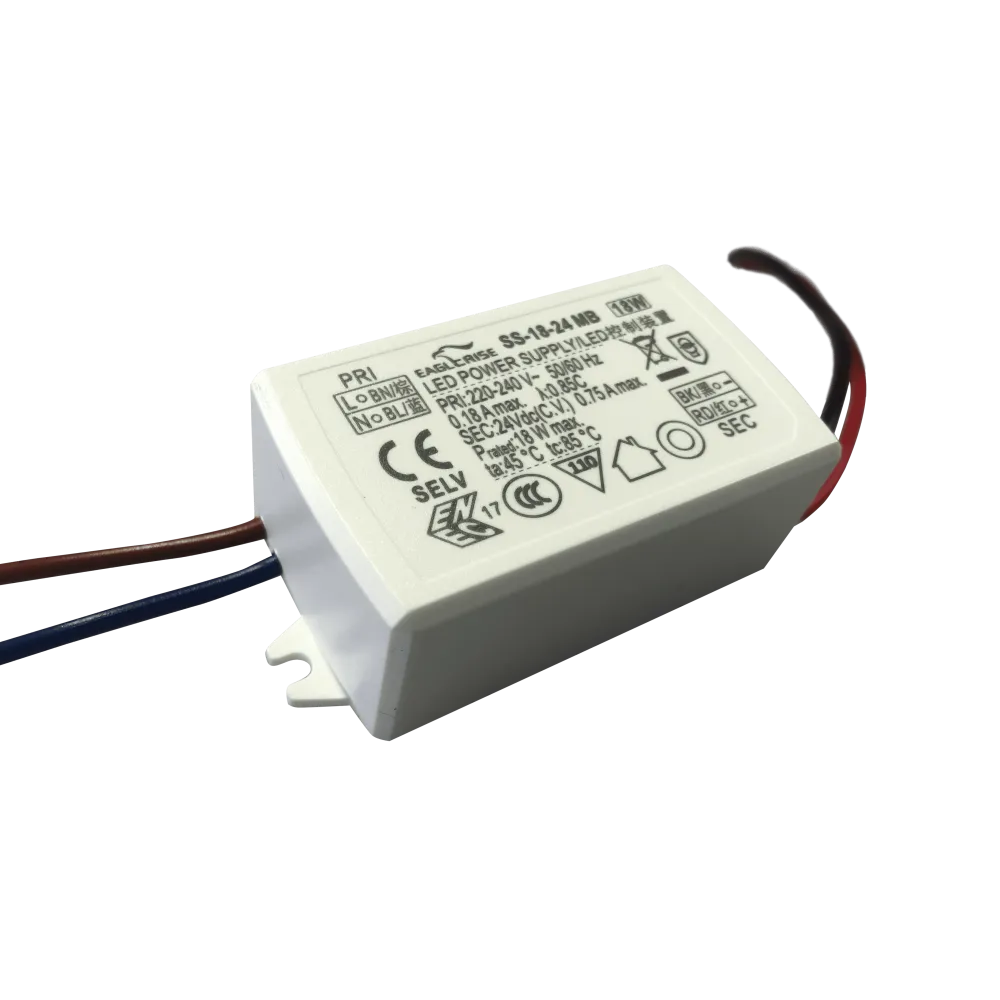

SS-18-24 MB is an 18W constant voltage LED Driver. The class II design (without FG) accepts input from 180 to 264Vac. With it’s compact dimension it ideally fits the entry-level LED applications like spot light, kitchen lighting and any other application where compact dimensions are required.
Technical data
Lifetime >30’000 hours
Operating temperature range from -20°C to +45°C
Dimensions 68.5 x 35 x 23.2mm (L x W x H)
5 years warranty
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer warranty | 5 years |
| Input voltage range (VAC) | 200-240 V |
| Connection | Cable |
| IP protection | IP20 |
| Height | 23 mm |
| Width | 35 mm |
| Length | 68.5 mm |
| Application | Single color |
| Control | Non-dimmable |
| Channels | 1 |
| Output current | 0.75 A |
| Power | 18 W |
| Manufacturer | Eaglerise |
