About the product

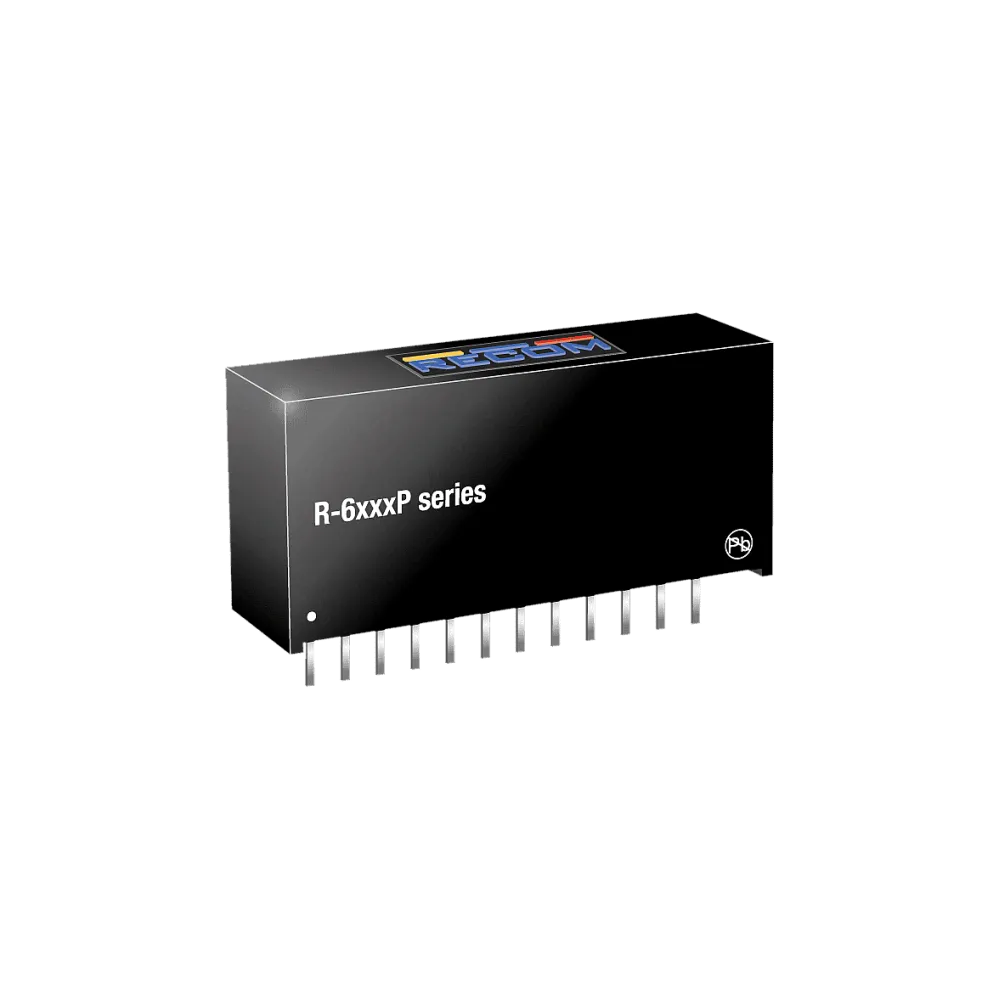

The R-6xxx series is a high performance 1.5V to 15V (18V), 1.1 Amp to 2Amp, 12-Pin SIP (single in-line package) switching regulator. The Synchronous rectification yields excellent efficiencies up to 97%. Short circuit protection reduces the short circuit input current to under 50mA.
Technical data
- Non-isolated
- Adjustable output voltage
- 1-2AMP adjustable positive step down integrated switching regulator
- Internal short circuit protection
- ON/OFF control (ground off)
- Efficiency up to 97 %
- Positive to negative
Product specifications
| Output voltage (VDC) | 1.8-9 V |
| Temperature range | -40°C to 85°C |
| Manufacturer | Recom |
| Height | 15 mm |
| Width | 9.1 mm |
| Length | 32.2 mm |
| Package / case | SIP12 |
| Regulation | Regulated |
| I/O isolation | Non isolated |
| Input voltage range (VDC) | 9-32 V |
| Nominal input voltage (VDC) | 12-24 V |
| Output current | 2000 mA |
| Power | 18 W |
| Efficiency | 90.00% |
