About the product

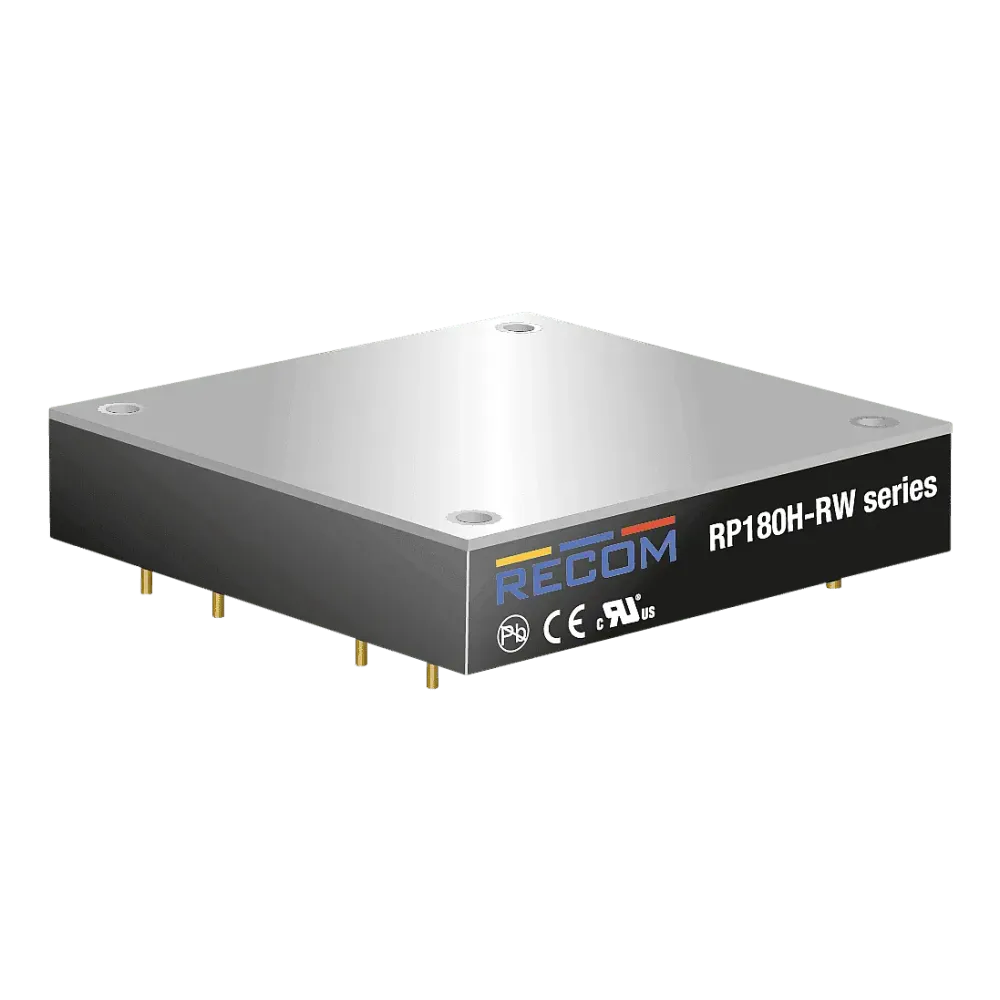

The RP180H series half-brick DC/DC converters are designed for rail vehicle and high voltage battery applications. Each series has three 4:1 input voltage ranges to cover all input voltages from 9 VDC to 160 VDC with isolated and regulated 5 V to 48 VDC outputs. The converters have high efficiency and metal base plates that allow a wide operating temperature range of -40 to +90°C (with forced air cooling). The housing is fitted with threaded inserts to allow secure fixing to the PCB or to a bulkhead for use in high shock and vibration environments. The converters are certified to EN50155, UL60950 and IEC/EN60950. The RP180H-RW series comes with a three-year warranty.
Technical data
- Wide entrance area of 4:1
- 3kVAC reinforced insulation for 110Vin and 2.25kVDC basic insulation for 24Vin & 48Vin
- Efficiency of up to 91
- No minimum load required
- UL60950-1, EN50155 and IEC/EN60950-1 certified
Product specifications
| Output voltage (VDC) | 48 V |
| Design | Halfbrick |
| Application | Railroad, ITE/AV |
| Additional functions | Remote ON/OFF |
| Nominal input voltage (VDC) | 110 V |
| Output current | 3800 mA |
| Input voltage ratio | N/A |
| Height | 12.7 mm |
| Width | 57.9 mm |
| Length | 61 mm |
| Manufacturer | Recom |
| Power | 180 W |
| I/O isolation | 3000 VAC |
