About the product

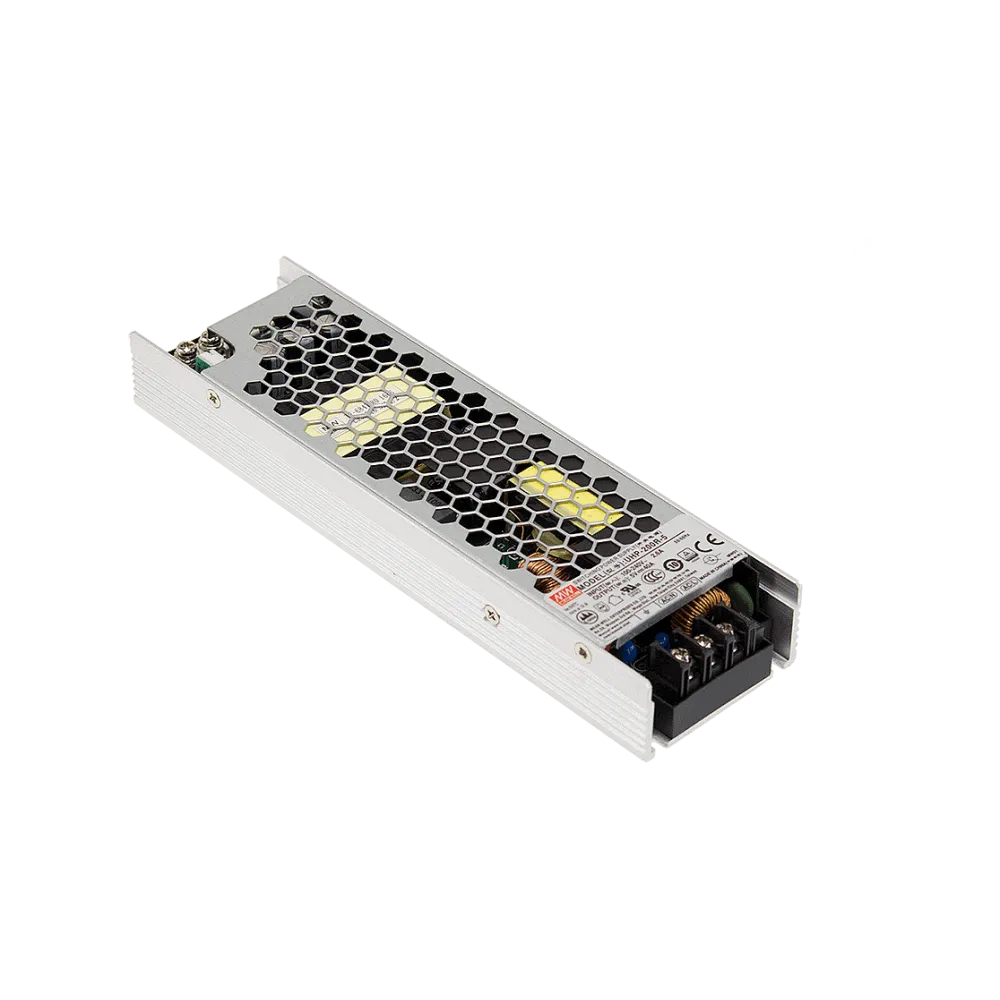

UHP-200R series is a single-output slim type power supply with 26mm of low profile design. UHP-200R has the complete protection functions and 5G anti-vibration capability;It is complied with the international safety regulations such as TUV EN62368-1, EN60335-1, UL62368-1 and GB4943. UHP-200 series serves as a high performance power supply solution for various industrial applications. Optional type with DC OK active signal and redundant function.
Technical data
- Universal AC input 90 to 264Vac
- Built-in active PFC function
- Optional type with DC OK active signal and redundant function
- Slim and Low profile (26mm)
- Working temperature range -30°C to +70°C
- Withstand 300Vac surge input for 5 sec.
- Operating altitude up to 5000 meter
- Dimension 194 x 55 x 26mm (L x W x H)
Product specifications
| Output voltage (VDC) | 4.2 V |
| Manufacturer warranty | 3 years |
| Manufacturer | MEAN WELL |
| Status signals | DC OK signal |
| Additional functions | Parallel connectable |
| Application | Household, ITE/AV |
| Voltage setting range | 3.6-4.4 VDC |
| Height | 26 mm |
| Width | 55 mm |
| Length | 194 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 90-264 V |
| Power | 168 W |
| Efficiency | 90.00% |
