About the product

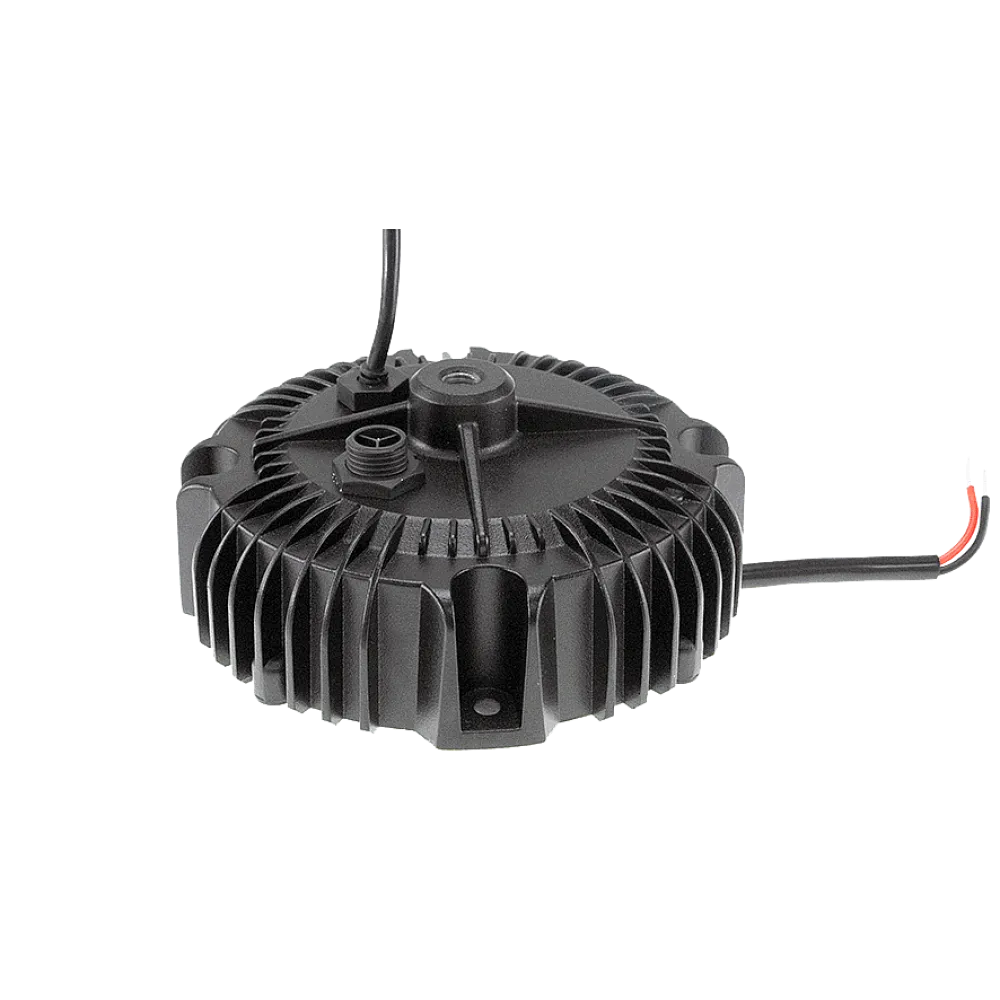

XBG-160 series is a 150W LED AC/DC Driver featuring the constant power mode output. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. AB Version with 3in1 dimming interface.
Technical data
- Universal AC Input 90 to 305Vac
- Constant Power Design
- Current adjustable via built-in potentiometer
- Output Voltage Region: 34 – 56Vdc
- Current adjustable range 1425 – 4100mA (factory setting 3300mA)
- Full power range: 2850 – 4100mA
- Built-in 3in1 dimming function (0-10V, PWM signal and resistance)
- Dimension ø 151.5mm x 60mm(DxH)
- 5 years warranty
- Manufacturer MEAN WELL
Product specifications
| Power | 160 W |
| Output voltage range (VDC) | 34-56 V |
| Output current | 1425-4100 mA |
| Input voltage range (VAC) | 100-277 V |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 5 years |
| Additional functions | Constant power |
| Connection | Cable |
| IP protection | IP67 |
| Diameter | 151.5 mm |
| Height | 60 mm |
| Application | Single color |
| Dimming method | Current regulation |
| Current setting | Potentiometer |
| Channels | 1 |
| Control | Resistor, 0-10V, 1-10V |
| Product series | XBG |
