About the product

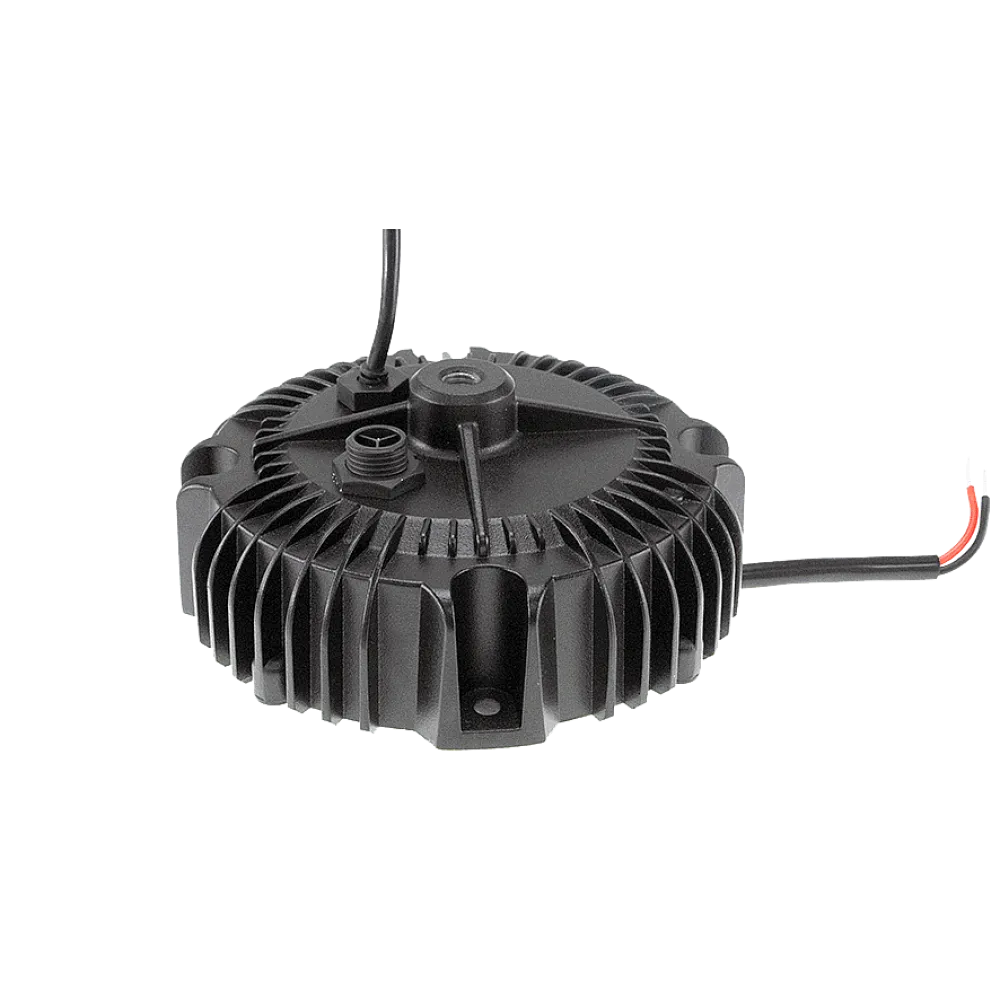

XBG-160 series is a 150W LED AC/DC Driver featuring the constant power mode output. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications.
Technical data
- Universal AC Input 90 to 305Vac
- Constant Power Design
- Current adjustable via built-in potentiometer
- Output Voltage Region: 34 – 56Vdc
- Current adjustable range 1425 – 4100mA (factory setting 3300mA)
- Full power range: 2850 – 4100mA
- Dimension ø 151.5mm x 60mm(DxH)
- 5 years warranty
- Manufacturer MEAN WELL
Product specifications
| Power | 160 W |
| Output voltage range (VDC) | 34-56 V |
| Output current | 1425-4100 mA |
| Input voltage range (VAC) | 100-277 V |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 5 years |
| Additional functions | Constant power |
| Connection | Cable |
| IP protection | IP67 |
| Diameter | 151.5 mm |
| Height | 60 mm |
| Application | Single color |
| Current setting | Potentiometer |
| Channels | 1 |
| Control | Non-dimmable |
| Product series | XBG |
