About the product

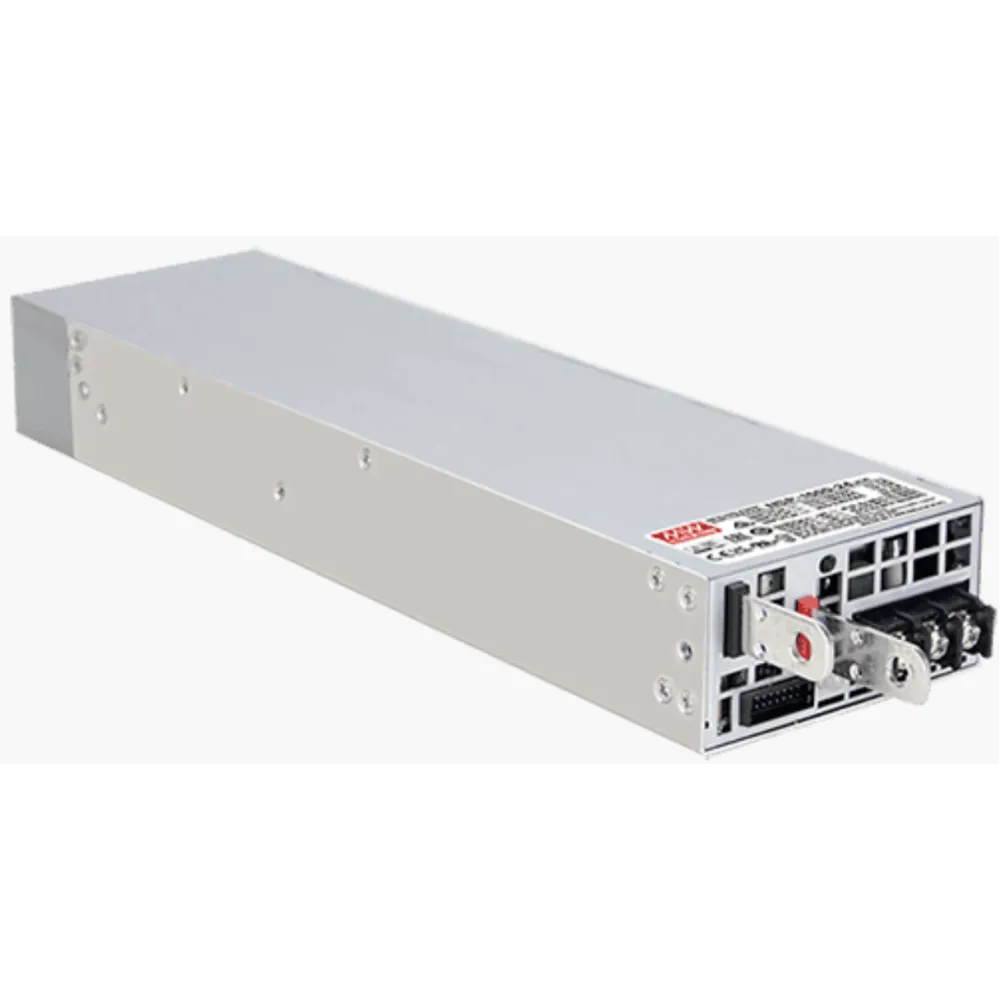

NSP-1600 is an industrial AC/DC power supply with an excellent price/performance ratio. Cooling is controlled by a temperature-controlled fan.
Technical data
- Universal AC input 90 to 264Vac
- Built-in active PFC function
- Built-in remote sense and remote On/Off control
- Built-in 12V/0.8A auxiliary power
- Output voltage can be trimmed between 40 – 125% by external control signal (60 ∼ 125% for NSP-1600-12)
- DC OK signal, over temperature alarm signal (OTP)
- forced air cooling by speed controlled built-in DC fan
- Working temperature range -30°C to +70°C
- Dimension 300 x 85 x 41mm (L x W x H)
- 5 Years Warranty
- Manufacturer MEAN WELL
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer warranty | 5 years |
| Manufacturer | MEAN WELL |
| Control signals | Programmable output voltage, Remote ON/OFF, Remote sense |
| Status signals | DC OK signal, temperature alarm |
| Additional functions | 12 V DC auxiliary output |
| Application | ITE/AV |
| Voltage setting range | 23.5-30.0 VDC |
| Height | 41 mm |
| Width | 85 mm |
| Length | 300 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 90-264 V |
| Power | 1600 W |
| Efficiency | 91.00% |
