About the product

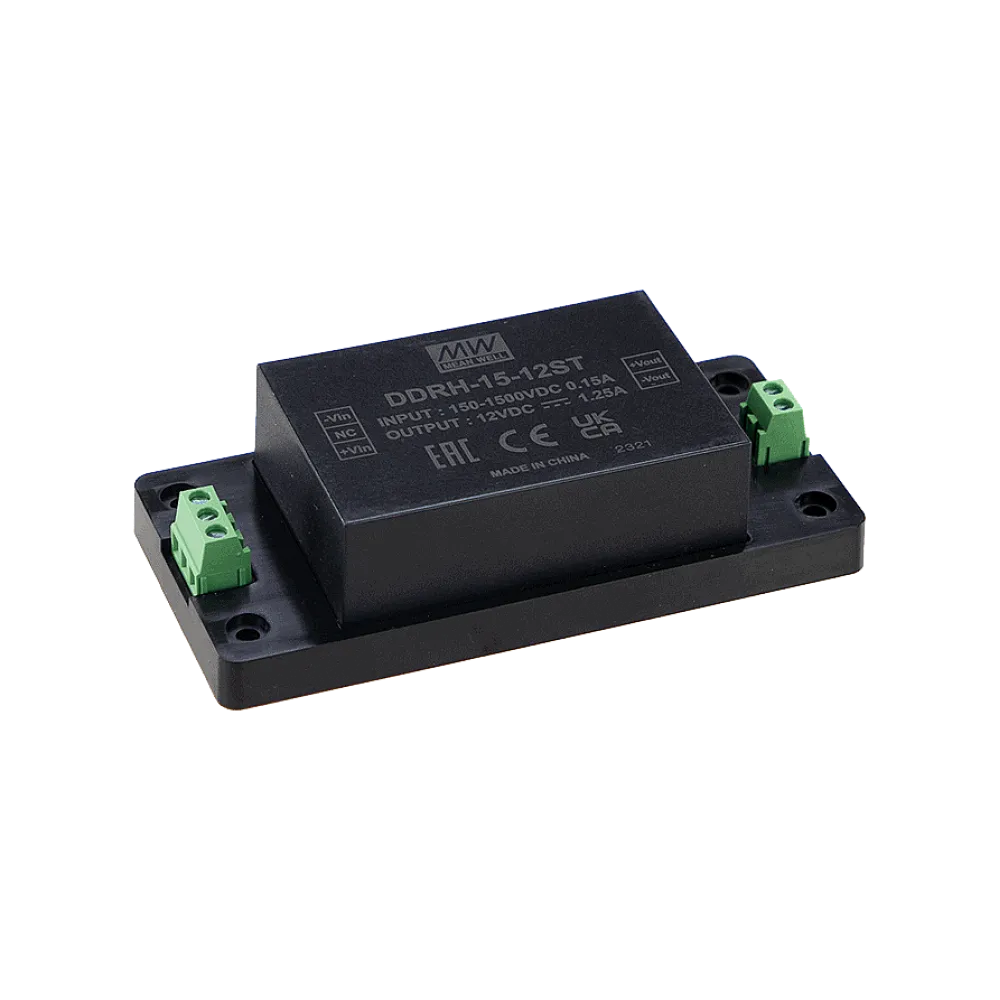

DDRH-15 series is a high reliability DC-DC converter with ultra-high input of 150-1500Vdc which can provide stable working voltage for load. The main features are as follows: compact size, -40-+80°C wide operating temperature, 4kVac high isolation voltage, 5000m altitude operation, low ripple and noise, complete protection measures and so on. The DDRH-15 complies with IEC62109-1 standard, it is suitable for industrial automation, monitoring, telecommunication and can be widely used in the renewable power generation applications such as solar power and windmills, photovoltaic systems, high voltage inversion, centralized DC bus application, charging columns, railroad and so on.
Technical data
- 150 to 1500Vdc 10:1 wide input range
- 4kvac I/O Isolation (reinforced)
- -40°C to +80°C working temperature range (note derating from 50°C)
- 5000m altitude
Product specifications
| Output voltage (VDC) | 15 V |
| Application | Photovoltaic |
| Height | 32 mm |
| Width | 57.3 mm |
| Length | 122.3 mm |
| I/O isolation | 4000 V AC |
| Input voltage ratio | N/A |
| Input voltage range (VDC) | 150-1500 V |
| Nominal input voltage (VDC) | 800 V |
| Output current | 1000 mA |
| Power | 15 W |
| Manufacturer | MEAN WELL |
