About the product

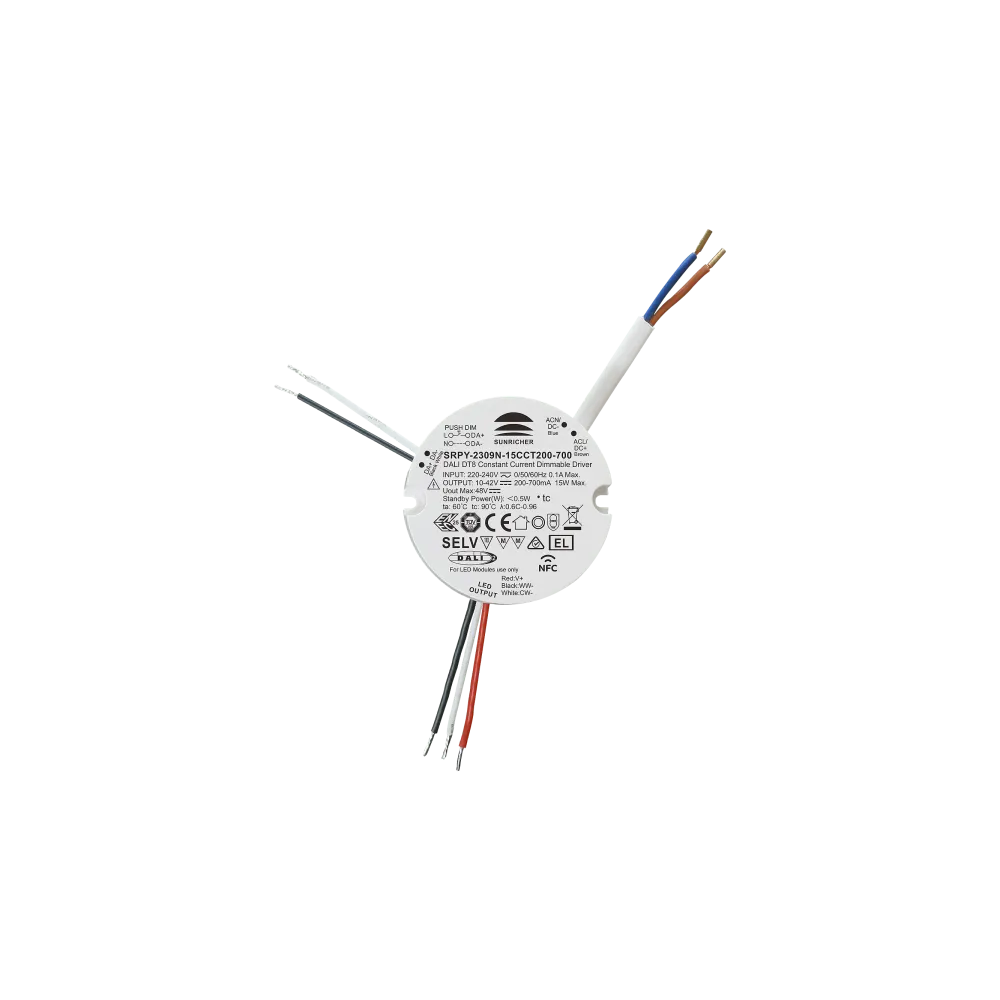

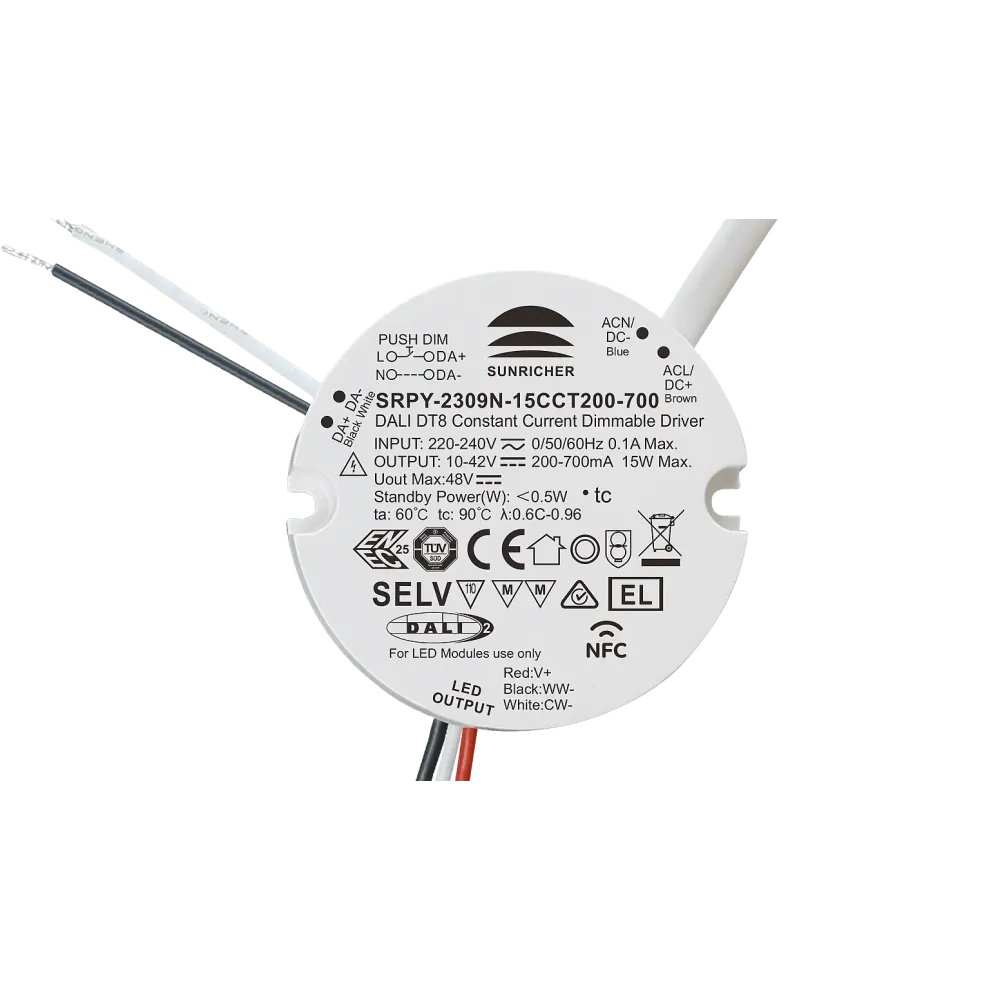

SRPY-2309N-15CCT200-700 is a flexible, dimmable Tunable white LED converter with constant current output. The power supply unit can be controlled with DALI2 DT8. The output current can be set between 200 and 700mA via NFC.
Control
- DALI2 DT8
Application
- Tunable White
Current setting
- NFC
Dimming range
- The load-dependent dimming range is 0.1% to 100%
Dimming method
- Amplitude/CCR dimming
Technical data
- DT8 dimmable 2-channel TW power supply unit
- 2 channel 200~700mA constant current output, selectable via NFC program tool, default 350mA
- In accordance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.IEC 62386-209:2011
- Built-in DALI2 interface, DALI DT8 device
- Dimmable LED driver. Max. output power 15W
- Output voltage range: 10-42VDC
- Class 2 power supply unit, fully insulated plastic housing
- High power factor and efficiency
- For switching and dimming Tunable White LED lighting fixtures
- Amplitude dimming, smooth and deep dimming down to 0.01%
- Compatible with universal DALI masters that support DT8 commands
- Protection class IP20
- 5 year guarantee
- Dimensions: Ø57 x 24mm
DOWNLOAD SR NFC TOOL
ANDROID APPLE
Product specifications
| Manufacturer | Sunricher |
| Connection | Spring clamp |
| Manufacturer's warranty | 5 years |
| Application | Tunable White |
| IP protection | IP20 |
| Diameter | 57 mm |
| Height | 24 mm |
| Current setting | NFC |
| Power | 15 W |
| Control | DALI DT8, AC Push Dimming |
| Channels | 2 |
| Dimming type | Current control |
