About the product

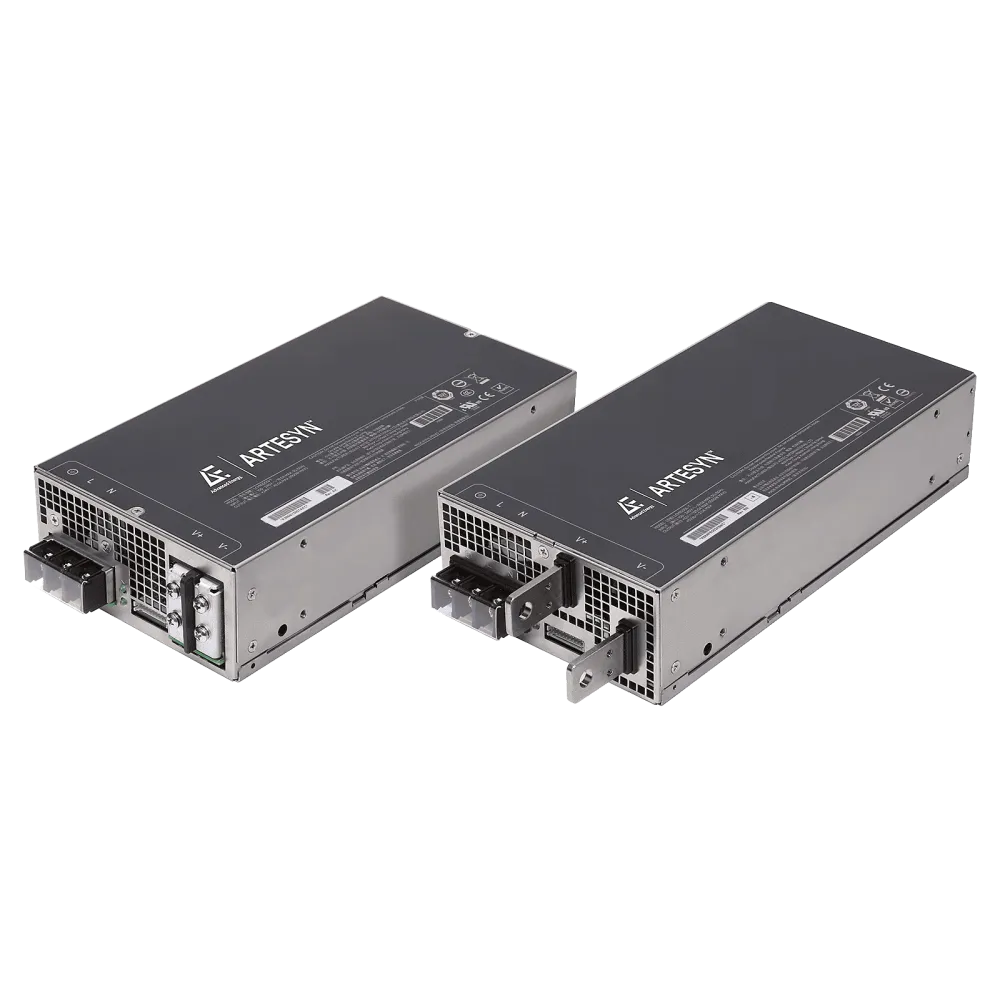

Advanced Energy’s Artesyn LCM-Family 300/600/1000/1500/3000Watt provide for a very wide range of AC/DC embedded power requirement. Offering no Power Derating over the entire Input range 85…264Vac, nominal outputs of 12V, 15V, 24V, 36V or 48Vdc (LCM3000: additionally 18Vdc and 72Vdc) and adjustable voltage of wide ranges from 10.8…52.8Vdc .
Technical data
- 1500Watt output power
- Dimensions 254 x 132 x 61.7mm
- Industrial/Medical safety
- No low line derating
- Operating Temperature -40°C…70°C with derating
- Optional 5Vdc @2A standby
- Efficiency 89%
- Variable speed "Smart Fans"
- DSP controlled
- Option conformal coating
- Output adjustment range 10%
- Margin programming
- ORing FET
- Warranty 3 Years
- Manufacturer Artesyn
Product specifications
| Output voltage (VDC) | 36 V |
| Manufacturer warranty | 3 years |
| Manufacturer | Artesyn |
| Control signals | Remote ON/OFF, Remote sense |
| Status signals | AC OK signal, DC OK signal |
| Additional functions | 5V DC auxiliary output, Parallel connectable |
| Application | ITE/AV, Medical |
| Voltage setting range | 32.4-39.6 VDC |
| Height | 61.7 mm |
| Width | 132 mm |
| Length | 254 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 90-264 V |
| Power | 1548 W |
| Efficiency | 89.00% |
