About the product

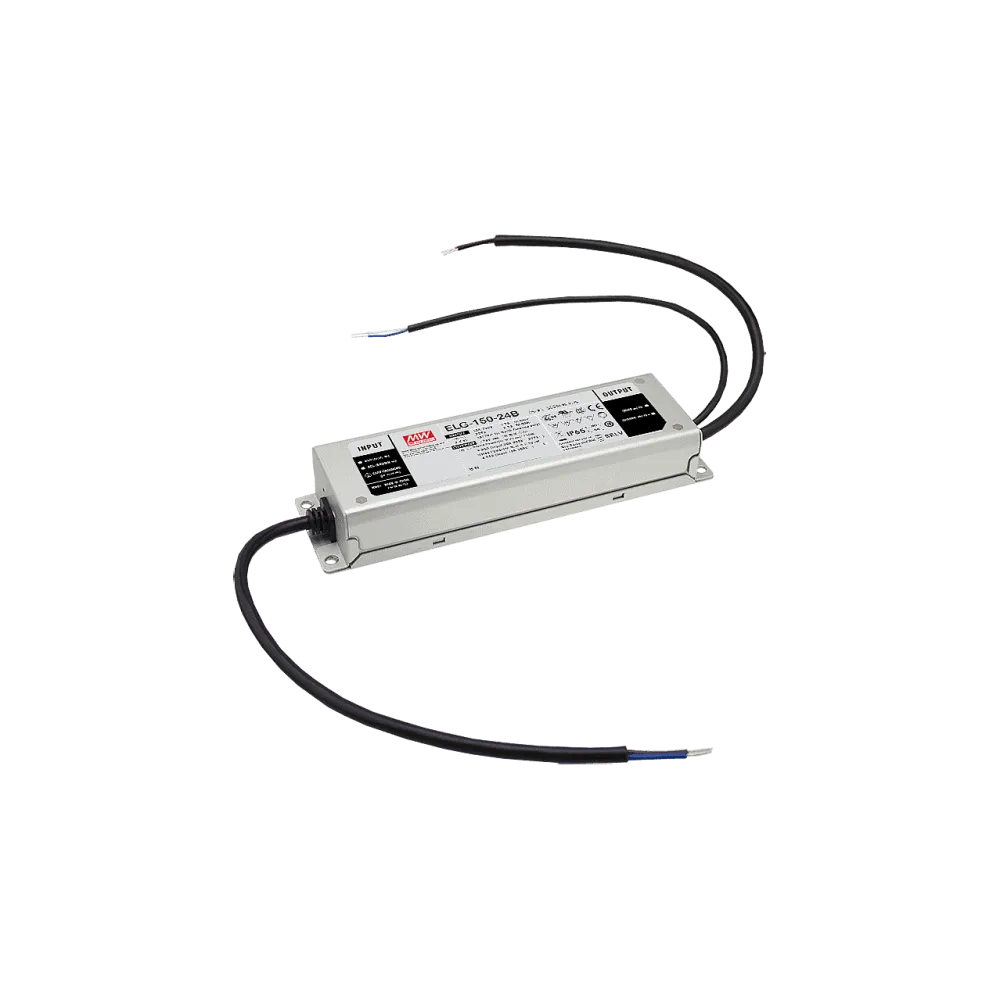

MEAN WELL ELG-150-xxB-3Y series is a AC/DC LED driver featuring the dual mode constant voltage and constant current output. Built-in 3in1 dimming function (dim-to-off).
Technical data
- 100-305 Vac Input Range (De-rating may be needed under low input voltages)
- Built-in active PFC Function
- Dimming by current reduction
- Constant current level can be adjusted through 0-10Vdc / PWM signal or Resistance
- IP67 Design
- Meet 6kV Surge Immunity Level (IEC61000-4-5)
- Fully encapsulated metal housing
- Typical Lifetime 50’000h
- Working Temperature -40°C to +70°C
- Dimensions 219 x 63 x 35.5mm (L x W x H)
- 5 years warranty
- Manufacturer MEAN WELL
Product specifications
| Output voltage (VDC) | 54 V |
| Manufacturer warranty | 5 years |
| Product series | ELG |
| Input voltage range (VAC) | 110-277 V |
| Connection | Cable |
| IP protection | IP67 |
| Height | 35.5 mm |
| Width | 63 mm |
| Length | 219 mm |
| Application | Single color |
| Control | Non-dimmable |
| Channels | 1 |
| Output current | 2.8 A |
| Power | 150 W |
| Manufacturer | MEAN WELL |
