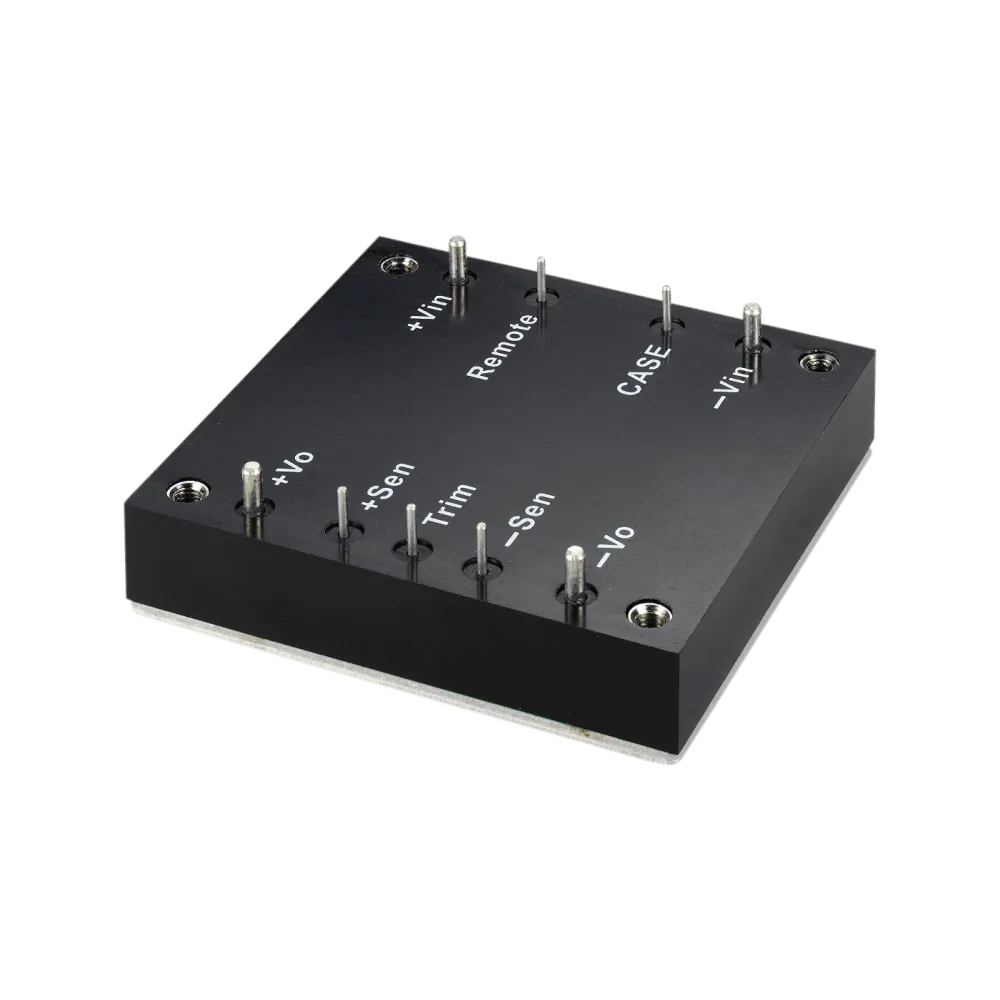

About the product
The CHB150W series offers 150 watts of output power with high power density in an industry standard halfbrick package. The CHB150W series has wide (4:1) input voltage ranges of 9-36 and 18-75VDC and provides a precisely regulated output. This series has features such as high efficiency, 1500VDC isolation and a case operating temperature range of –40°C to 100°C. The modules are fully protected against input UVLO (under voltage lock out), output short circuit, output over voltage and over temperature conditions. Furthermore, the standard control functions include remote on/off and output voltage trimming. All models are highly suited to telecommunications, distributed power architectures, battery operated equipment, industrial, and mobile equipment applications.
Technical data
- 150W Isolated Output
- Efficiency 91%
- Industrial Standard Half Brick
- 4:1 Input Range
- Regulated Outputs
- Remote On/Off
- Protection: Over Temperature/Over Voltage/Over Current/Short circuit
- Safety meets UL60950-1 (except 28Vdc/48Vdc)
- Dimension 57.9 x 61.0 x 13.2mm (L x W x H)
Product specifications
| Output voltage (VDC) | 28 V |
| Manufacturer | Cincon |
| Application | ITE/AV |
| Height | 13.2 mm |
| Width | 61 mm |
| Length | 57.9 mm |
| Package / case | Halfbrick |
| Additional functions | Remote ON/OFF, Remote sense, Voltage Trim |
| Regulation | Regulated |
| I/O isolation | 1500 V DC |
| Input voltage ratio | N/A |
| Input voltage range (VDC) | 18-75 V |
| Nominal input voltage (VDC) | 24-72 V |
| Output current | 5400 mA |
| Power | 150 W |
| Manufacturer warranty | 3 years |
