About the product

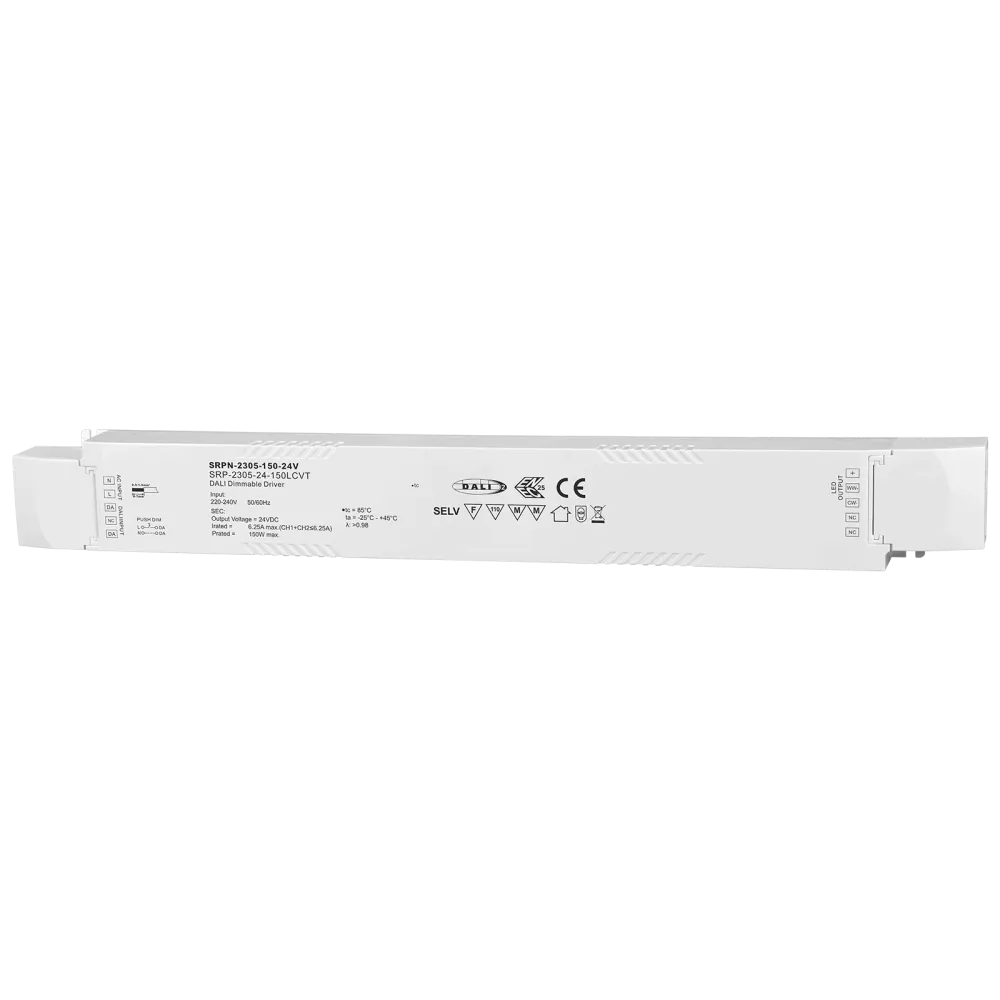

SRPN-2305-150-24V with PWM output and integrated DALI DT6 interface is ideal for operating constant voltage LED applications such as LED strips.
Control
DALI, DALI DT6, AC PUSH
Application
Single colour, Tunable White
Dimming range
The load-independent dimming range is 0.1% to 100% of the connected load.
Dimming method: PWM, 1.5kHz
Technical data
- DALI DT6 & AC PUSH dimmable 2-channel power supply unit
- 220-240VAC input voltage range
- 2-channel DC24V constant voltage outputs (total output power up to 150W)
- High power factor and efficiency
- Generally compatible with DALI masters that support DT6 commands
- Complies with DALI IEC 62386-101,-102,-207 standard
- IP20 protection class
- Protection class II
- Plastic housing
- Operating temperature range from -25°C to +50°C
- Dimension 365.6 x 43 x 30mm
- 5 years warranty
Product specifications
| Output voltage (VDC) | 24 V |
| Product series | SRPN-2305 |
| Input voltage range (VAC) | 220-240 V |
| Connection | Screw terminal |
| IP protection | IP20 |
| Height | 30 mm |
| Width | 43 mm |
| Length | 365.6 mm |
| Application | Single color, Tunable white |
| Dimming method | PWM |
| Control | DALI, AC Push Dimming |
| Channels | 2 |
| Output current | 6.25 A |
| Power | 150 W |
| Manufacturer warranty | 5 years |
