About the product

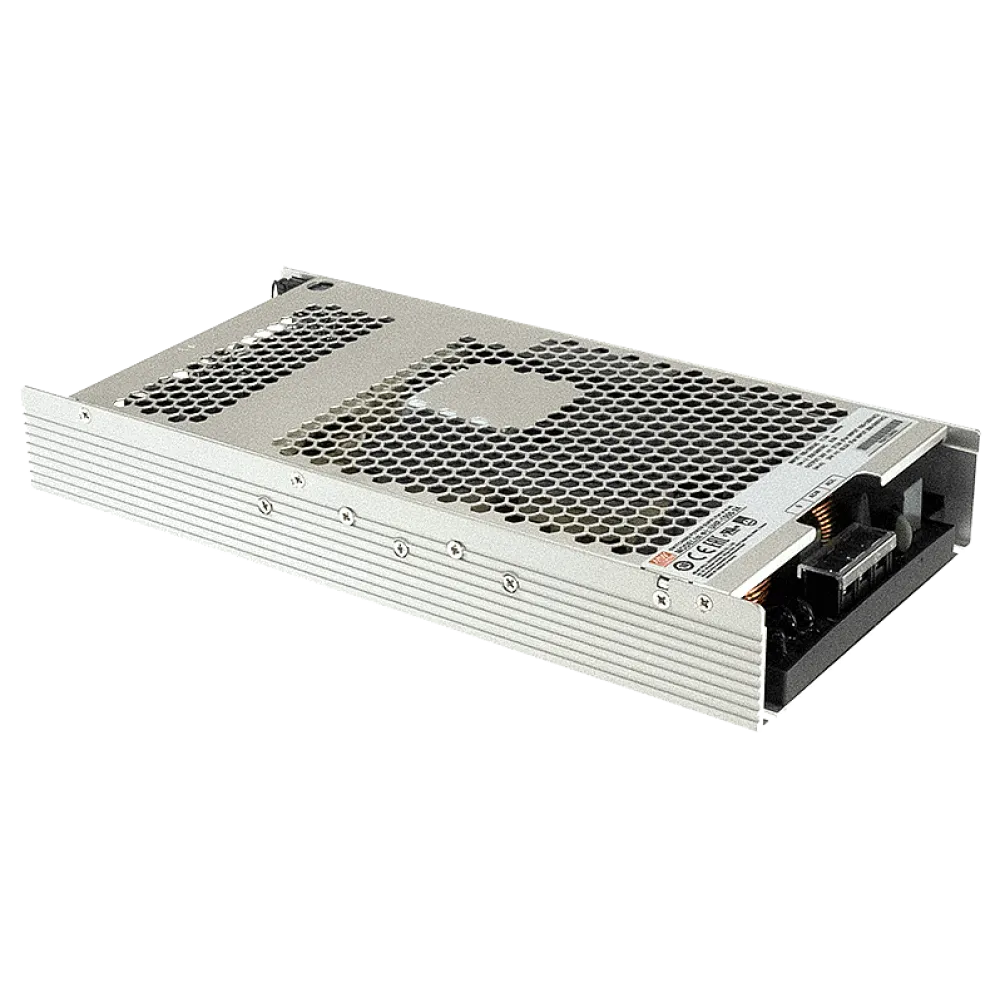

UHP-1500-HV series is a single-output slim type power supply with 41mm of low profile design and high voltage output. In addition to the high efficiency of up to 96% the whole series operates from -30°C to +70°C under conduction cooling without fan.
Technical data
- Universal AC input 90 to 264Vac
- Built-in active PFC function
- Fanless design with 1500W conduction
- Slim and Low profile (41mm)
- DC OK signal
- Remote ON/OFF
- Programmable output voltage from 50 to 120%
- Programmable current from 20 to 100%
- Working temperature range -30°C to +70°C
- Ultra high efficiency of 96%
- Operating altitude up to 5000 meter
- Dimension 290 x 140 x 41mm (L x W x H)
- 5 years warranty
Product specifications
| Output voltage (VDC) | 230 V |
| Manufacturer warranty | 5 years |
| Manufacturer | MEAN WELL |
| Control signals | Programmable output current, Programmable output voltage, Remote ON/OFF |
| Status signals | DC OK signal |
| Additional functions | 12 V DC auxiliary output |
| Application | ITE/AV |
| Voltage setting range | 108.0-260.0 VDC |
| Height | 41 mm |
| Width | 140 mm |
| Length | 290 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 90-264 V |
| Power | 1500 W |
| Efficiency | 95.00% |
