About the product

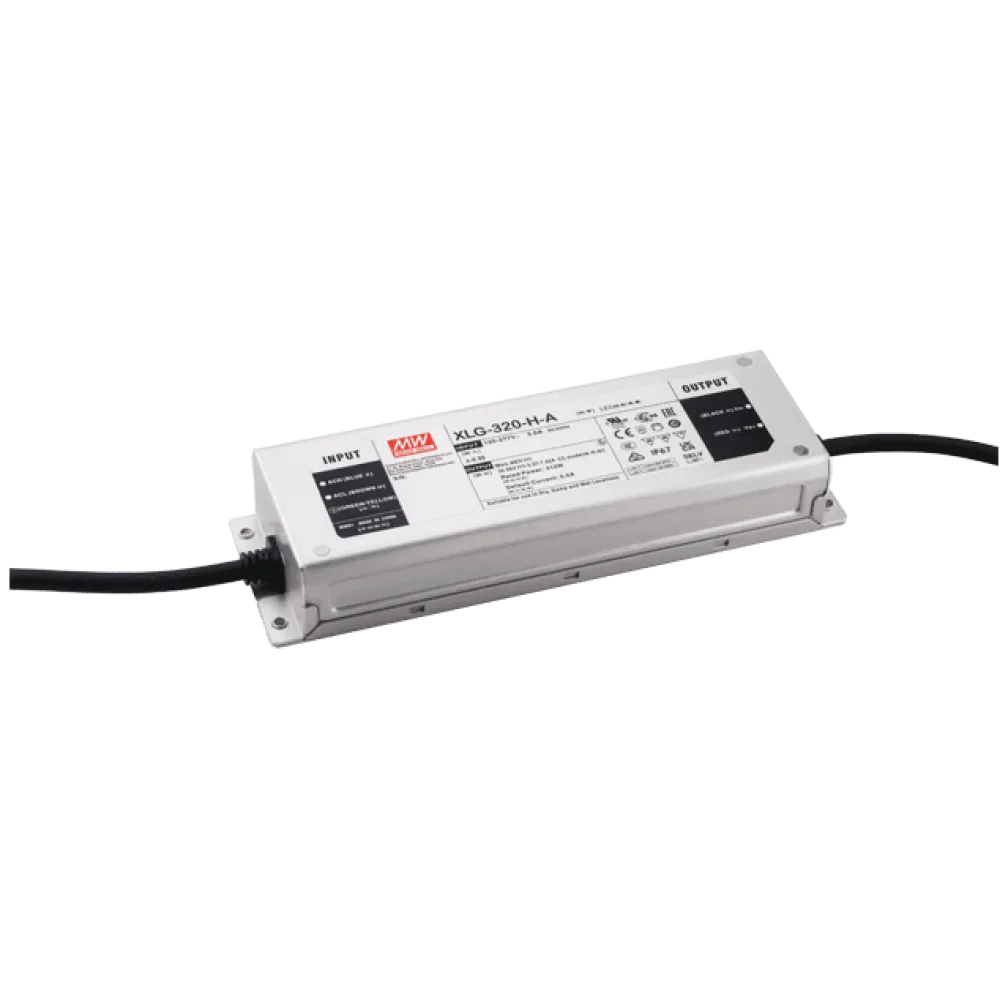

XLG-320-V-A LED driver with constant voltage output can supply both 12V and 24V LED applications. The required output voltage can be adjusted with a potentiometer on the LED driver. Due to the IP67 protection, the power supply can be used in indoor as well as outdoor applications.
Technical data
- Output voltage 12V or 24V, adjustable with built-in potentiometer
- Metal housing with IP67
- Dimensions 246 x 77 x 39.5mm (L x W x H)
Product specifications
| Output voltage (VDC) | 12-24 V |
| Manufacturer warranty | 5 years |
| Product series | XLG |
| Input voltage range (VAC) | 110-277 V |
| Additional functions | Voltage setting on the unit |
| Connection | Cable |
| IP protection | IP67 |
| Height | 39.5 mm |
| Width | 77 mm |
| Length | 246 mm |
| Application | Single color |
| Control | Non-dimmable |
| Channels | 1 |
| Output current | 13-18 A |
| Power | 216-312 W |
| Manufacturer | MEAN WELL |
