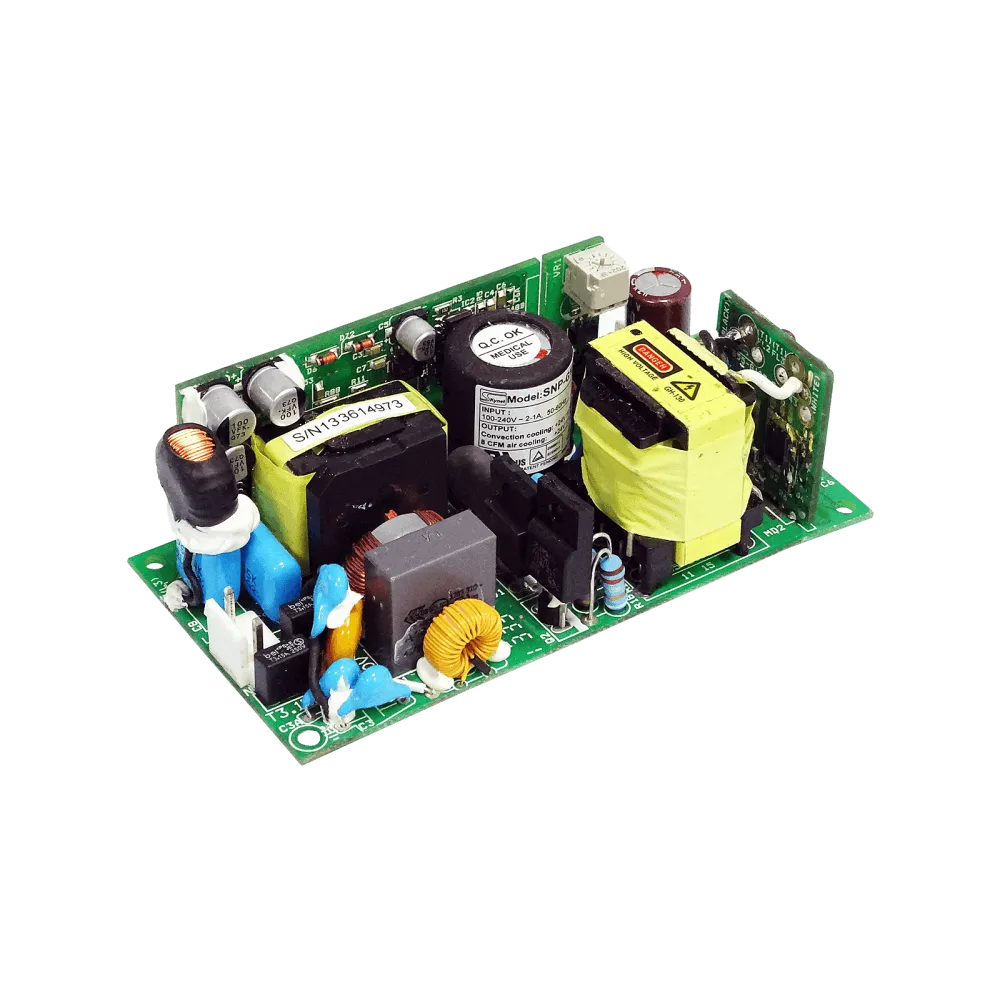

122W Medical Open Frame Power Supply 36V/3.3A
Technical data
- Input voltage 90 to 264Vac
- UL/IEC/EN60601-1 medical approval, 2 x MOPP Level
- 200 Watt peak load capability for 5 Sec.
- Auxiliary 12V output for fan
- Temperature range -20°C to +70°C
- No-load current consumption 0.5W
- Dimensions 106.6×50.8.2×32.5mm (L x W x H)
- Warranty: 10 years
- Manufacturer Skynet
Product specifications
| Output voltage (VDC) | 36 V |
| Manufacturer | Skynet |
| Manufacturer warranty | 10 years |
| Additional functions | 12V DC auxiliary output, Peak Power |
| Height | 32 mm |
| Width | 50.8 mm |
| Length | 106.6 mm |
| Protection class | Class I |
| Application | Medical |
| Power | 120 W |
| Product series | SNP |
