About the product

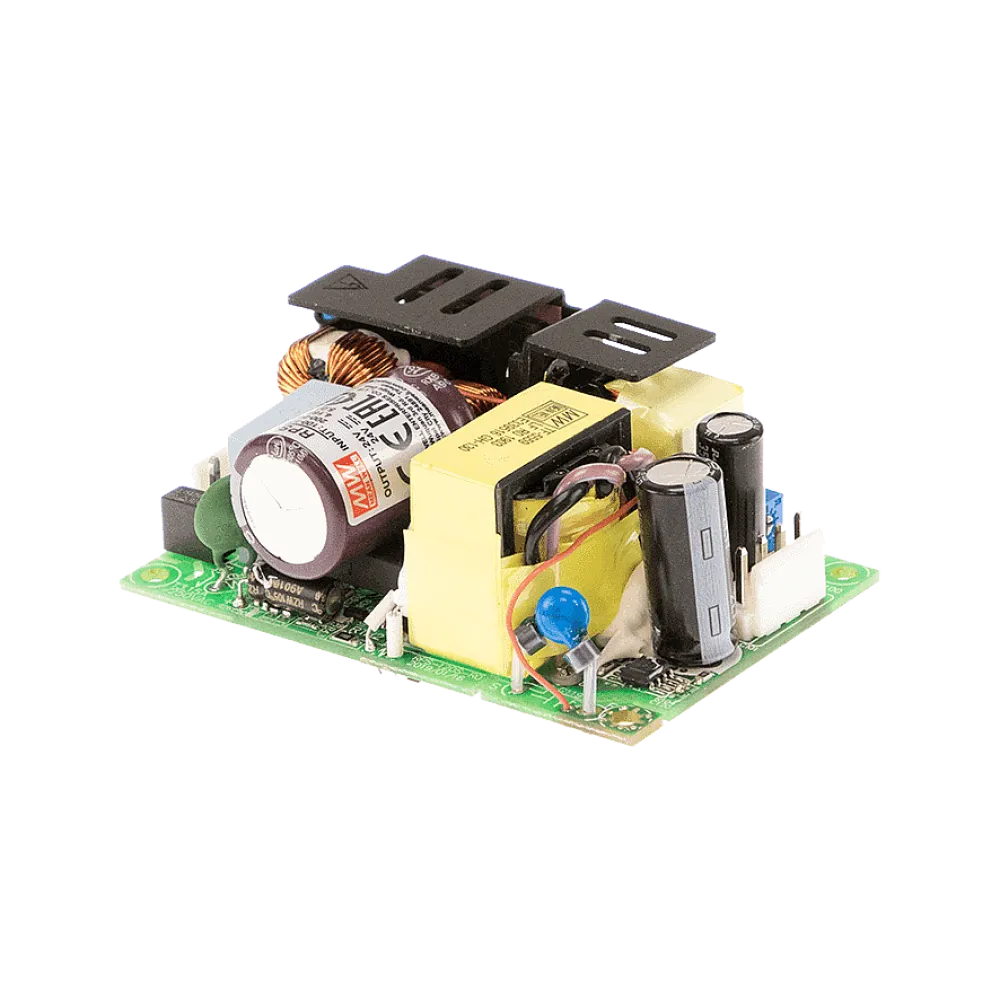

RPS-120S Series High Efficiency Miniaturized 3x2 Medical Grade Open Frame Power Supply
Technical data
- 3x 2 ultra-high power density miniaturized design (18.2W/in3 )
- Full range 80~264VAC input with built-in PFC function
- 120W output power without external fan cooling, 150W peak load (10 seconds)
- 2xMOPP isolation level, low leakage current 150μA, suitable for type BF medical applications
- Suitable for installation in Class I (with FG) or Class II (no FG) systems
- No load power consumption 0.5W
- High efficiency up to 94%
- -30~+85° ultra-wide operating temperature range
- Operation altitude up to 4000 meters
- Protections: short circuit/overload/over voltage/over temperature
- Compliance to medical (IEC/EN/ANSI/AAMI 60601) safety: CB/UL/cUL/TUV/EAC/CE
- Dimensions (LxWxH): 76.2×50.8x28mm
Product specifications
| Output voltage (VDC) | 24 V |
| Product series | RPS |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 3 years |
| Additional functions | Peak Power |
| Height | 28 mm |
| Width | 50.8 mm |
| Length | 76.2 mm |
| Protection class | Class I, Class II |
| Standard size | 2 x 3 inches |
| Application | Medical |
| Power | 120 W |
| Efficiency | 93.00% |
Data sheets
