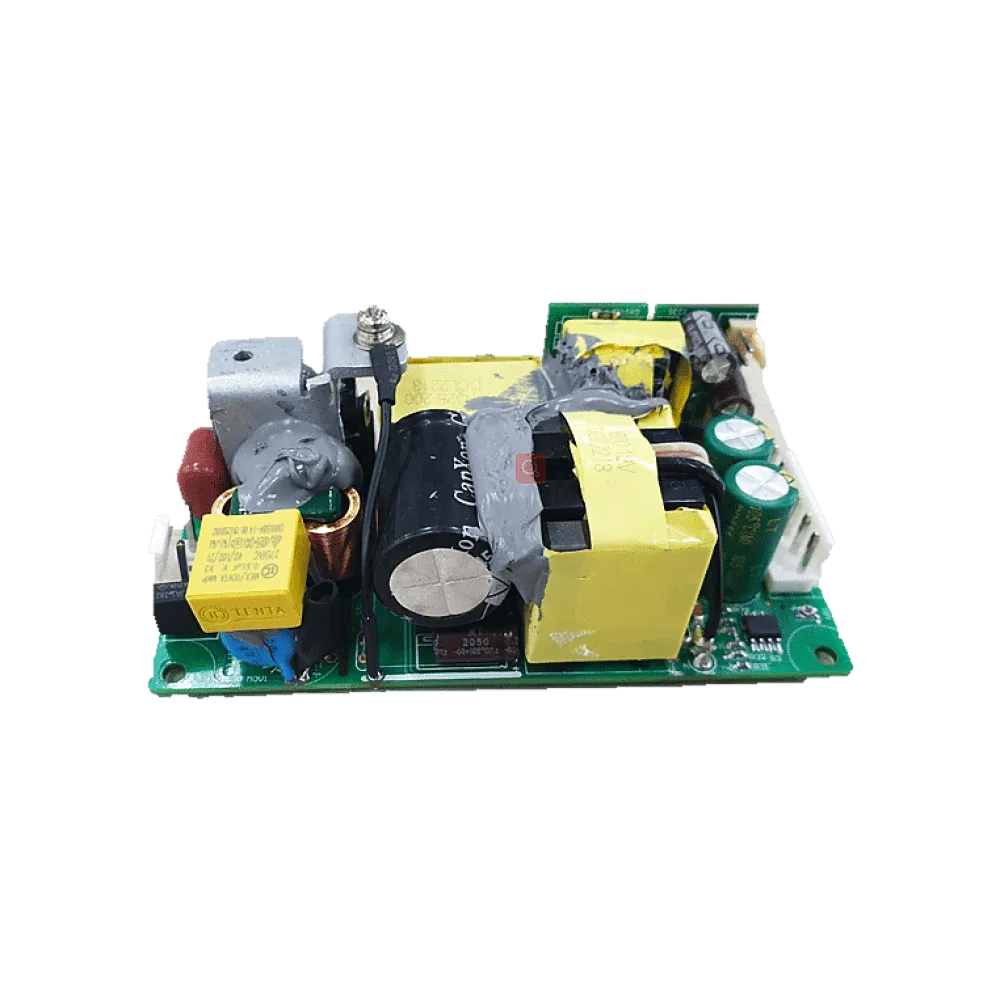

About the product
The NGB150 series from SL Power is a powerful family of AC/DC power supplies for next generation medical and industrial applications with an efficiency greater than 90%. One of the most important aspects of medical power supplies is safety approval.
Technical data
- 150Watt Output Power
- UL/CSA/IEC/IEC60601-1, IEC62368-1 Approved
- -40°C…+85°C Operating Temperature Range
- +/- 10% output voltage adjustment range
- 5Vdc standby voltage
- 4"x 2"x 1.26" Size
- <100uA Leakage Current
- Universal 85V…264Vac Input Range
- 3 Years Warranty
- SL Power Brand
Product specifications
| Output voltage (VDC) | 15 V |
| Manufacturer | SL Power |
| Manufacturer warranty | 3 years |
| Control signals | Remote ON/OFF |
| Height | 32 mm |
| Width | 50.8 mm |
| Length | 101.6 mm |
| Protection class | Class I |
| Standard size | 2 x 4 inches |
| Application | ITE/AV, Medical |
| Power | 150 W |
| Efficiency | 90.00% |
