About the product

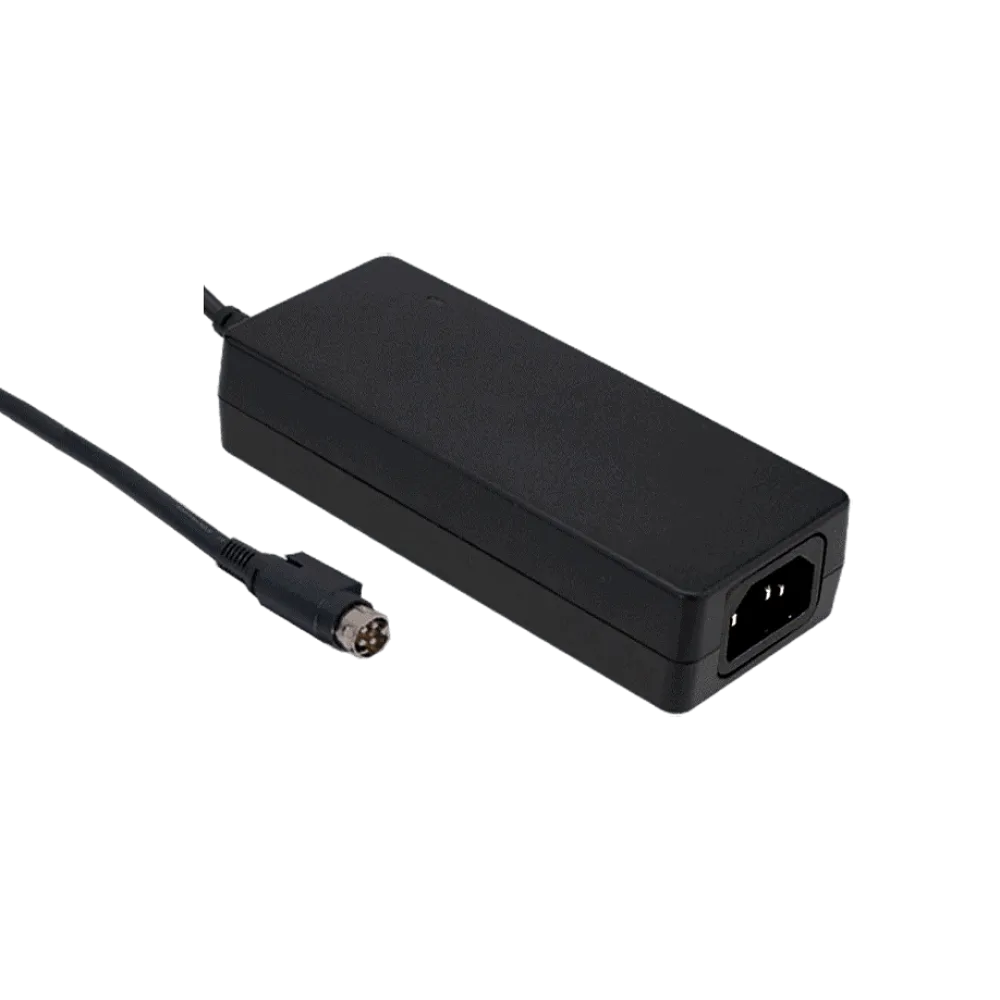

120W Medical Desktop Adaptor 24V/5A
Technical data
- Universal AC input 80 to 264Vac
- 3 pole AC inlet IEC320-C14
- DC plug Power DIN 4pin with lock type
- Medical Safety Approved (2xMOPP between primary to secondary)
- Leakage current <100µA
- Energy efficiency level VI
- No load power consumption <0.15W
- Class I power unit (with earth pin)
- Fanless design with -30° to +60°C working temperature
- Dimension 167 x 67 x 35mm (L x W x H)
Product specifications
| Output voltage (VDC) | 24 V |
| Power | 120 W |
| Application | Medical |
| Efficiency level | VI |
| DC connector | Power DIN 4P |
| Protection class | Class I |
| Additional functions | AC Protective earth connected to secondary side DC- |
| Manufacturer | MEAN WELL |
Data sheets
