About the product

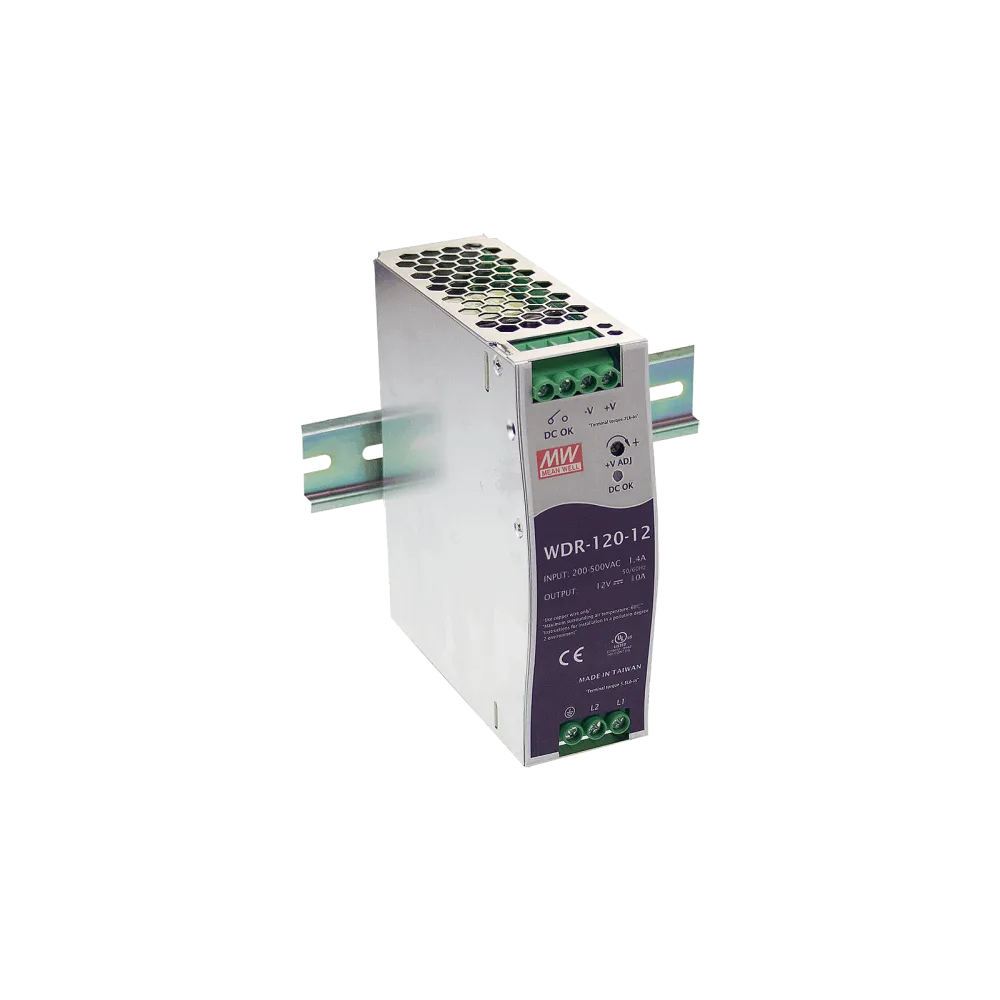

WDR-120 series is a DIN rail power supply with ultra-wide AC input range from 180 to 550Vac for single phase or 2-phase system.
Technical data
- 1+2 Phase wide input range 180 to 550Vac
- Can be installed on DIN Rail TS-35/7.5/15
- Operating temperature -25°C to +70°C
- LED Indication for DC OK
- Built-in DC OK relay contact
- Dimension 40 x 125.2 x 113.5mm (W x H x D)
- 3 years warranty
- Manufacturer: MEAN WELL
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 3 years |
| Product series | WDR |
| Status signals | DC OK relay contact |
| Overload characteristics | Constant current limiting |
| Certificates | IEC62368-1 / ITE, UL508 |
| Depth | 113.5 mm |
| Height | 125.2 mm |
| Width | 40 mm |
| Input voltage range (VAC) | 180-550 V |
| Output current | 5 mA |
| Power | 120 W |
| Efficiency | 91.00% |
