About the product

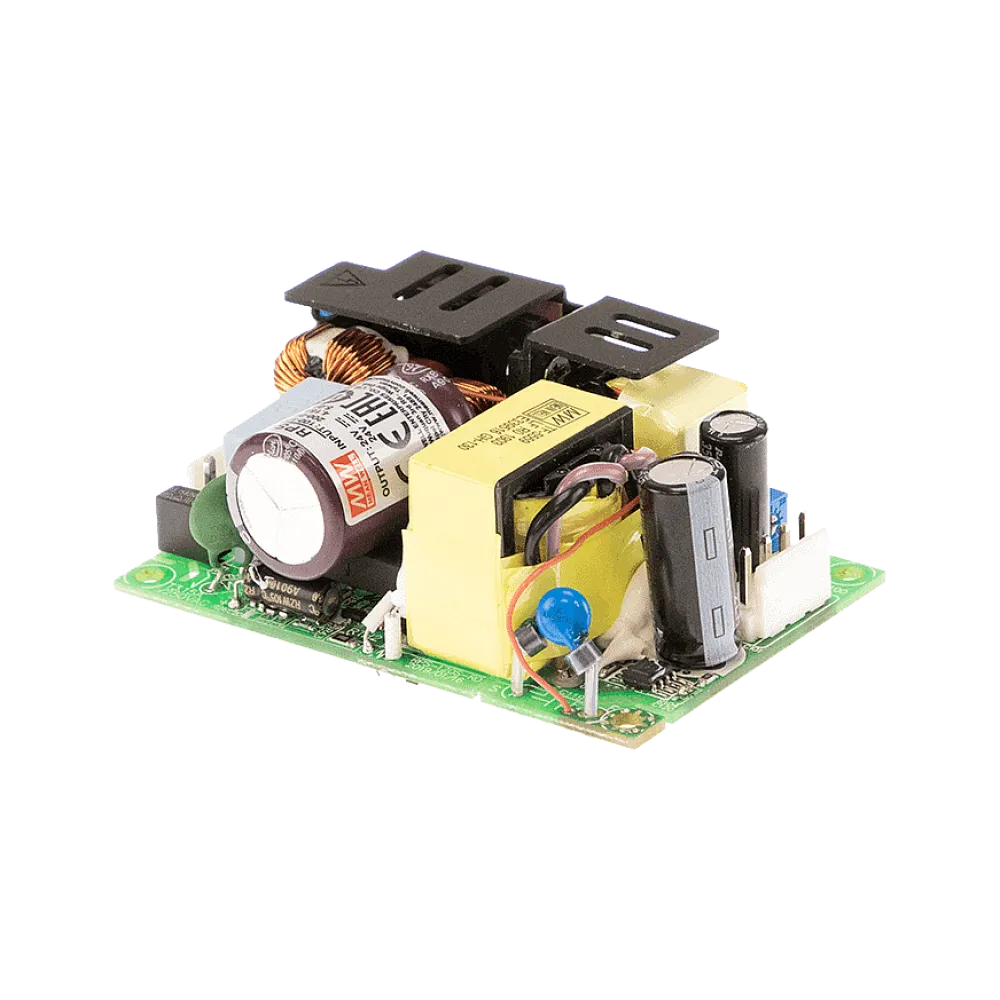

EPP-120S Series High Efficiency Miniaturized 3x2 Industrial Open Frame Power Supply
Technical data
- 3x 2 ultra-high power density miniaturized design (18.2W/in3 )
- Full range 80~264VAC input with built-in PFC function
- 120W output power without external fan cooling, 150W peak load (10 seconds)
- Suitable for installation in Class I (with FG) or Class II (no FG) systems
- No load power consumption 0.3W
- High efficiency up to 94%
- -30~+85° ultra-wide operating temperature range
- Operation altitude up to 5000 meters
- Protections: short circuit/overload/over voltage/over temperature
- IEC/EN/UL 62368-1
- Dimensions (LxWxH): 76.2×50.8x28mm
Product specifications
| Output voltage (VDC) | 15 V |
| Product series | EPP |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 3 years |
| Additional functions | Peak Power |
| Height | 28 mm |
| Width | 50.8 mm |
| Length | 76.2 mm |
| Protection class | Class I, Class II |
| Standard size | 2 x 3 inches |
| Application | ITE/AV |
| Power | 120 W |
| Efficiency | 92.00% |
