About the product

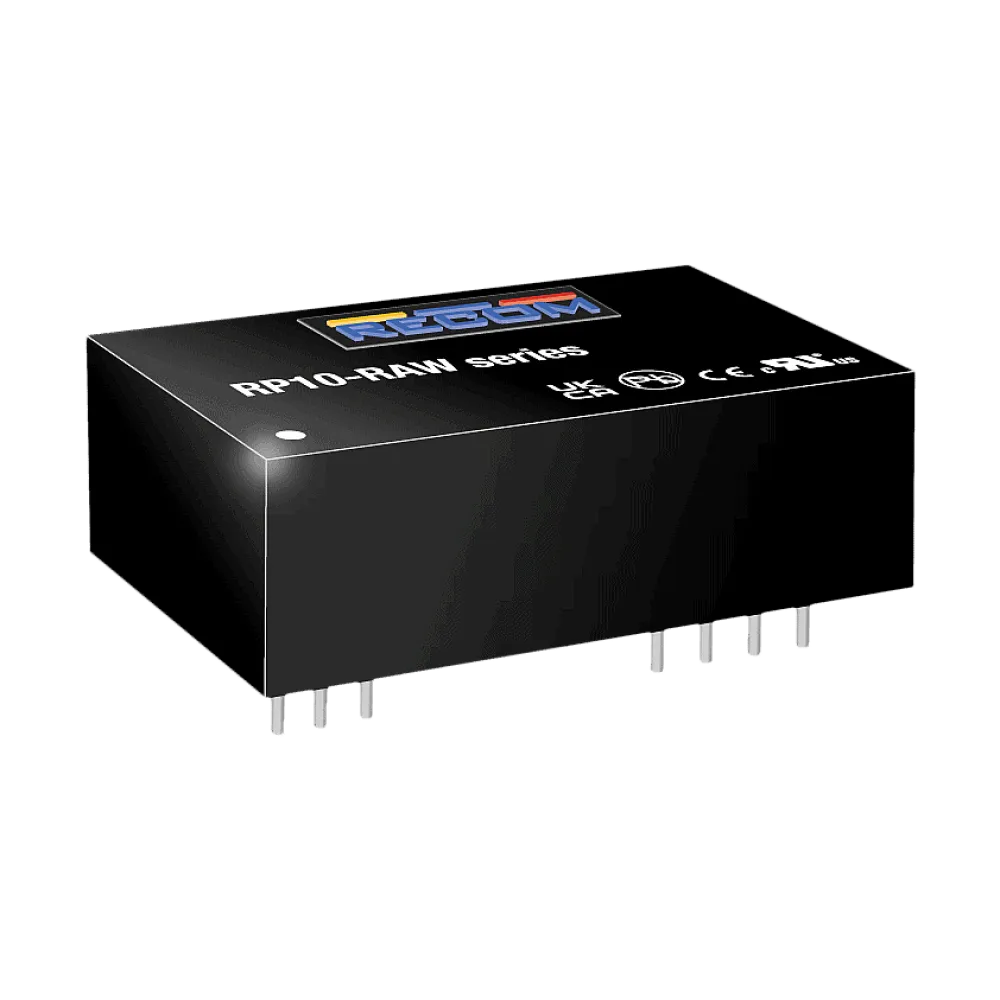

The RP10-RAW series DC/DC converters are designed for railway rolling stock applications with an extra wide continuous input voltage range of 36-160VDC (200VDC for 1s), making them suitable for 72V, 96V, and 110VDC railway systems, but they are also suitable for non-railway high voltage battery applications.
The RP10-RAW series features UVLO, OVP, SCP, and OLP making them ideal for many harsh railway and industrial applications such as powering IoT sensors, battery management systems, or electric fork-lift trucks.
Technical data
- Ultra wide 4:1 input range (36-160VDC)
- Certified for Railway applications (EN50155)
- -40°C to +105°C operating temperature with derating
- Input under voltage lockout
- Output OVLO, short circuit and OLP
- 3kVAC/1min. reinforced isolation
- Remote On/Off
Product specifications
| Output voltage (VDC) | 24 V |
| Efficiency | 88.00% |
| Manufacturer | Recom |
| Application | ITE/AV, Railway |
| Height | 10.6 mm |
| Width | 20.3 mm |
| Length | 31.8 mm |
| Package / case | DIP24 |
| Additional functions | Remote ON/OFF, Voltage Trim |
| Regulation | Regulated |
| I/O isolation | 3000 V DC |
| Input voltage ratio | N/A |
| Input voltage range (VDC) | 36-160 V |
| Nominal input voltage (VDC) | 48-110 V |
| Output current | 416 mA |
| Power | 10 W |
| Temperature range | -40°C to 105°C |
