About the product

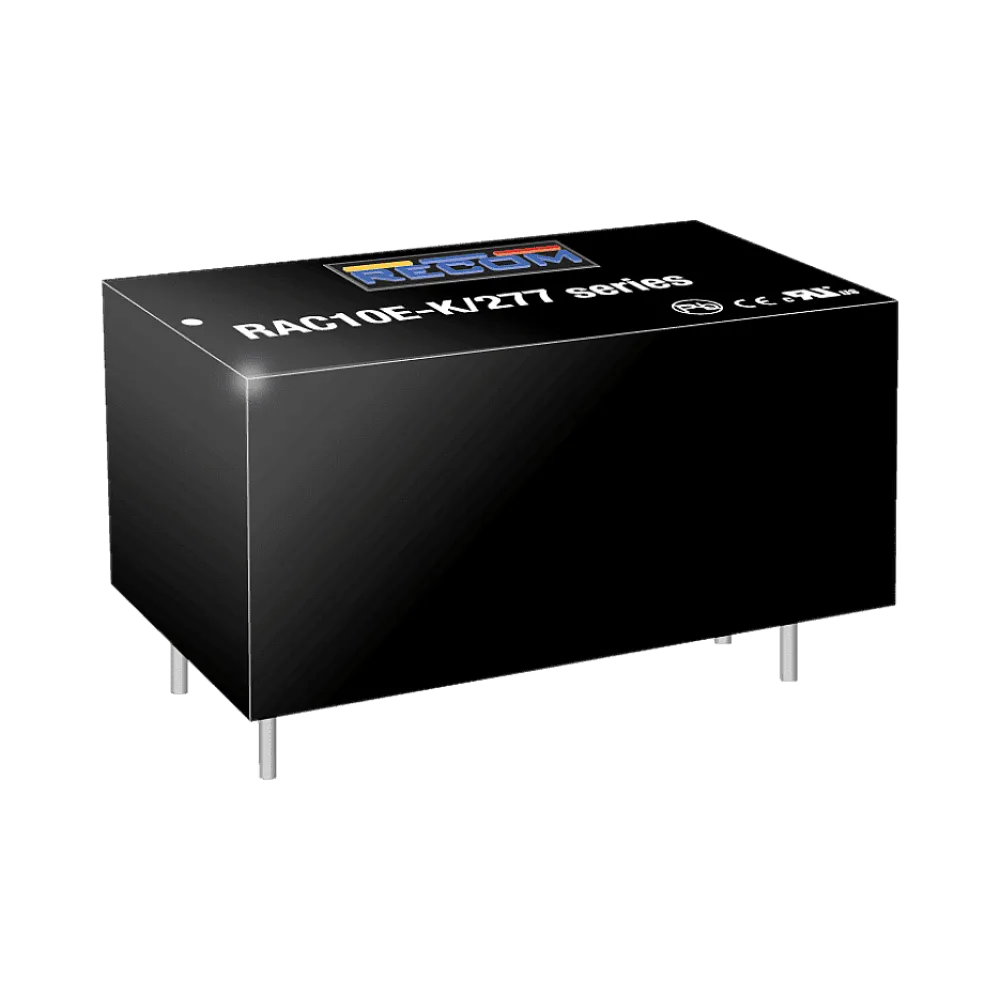

The economy itemized RAC10E-K series are extra compact 1.8"x1" encapsulated PCB-mount AC/DC modules with a wide input operating range of 85 ro 305Vac and come with international safety certifications for industrial, AV and ITE as well as household standards. These Power Supply modules with certifications to overvoltage category OVC III environments operate in a temperature range of -40°C to +90°C with up to 5000m operating altitude and offer fully protected single outputs as well as EMC class B compliance without the need of any external components.
Technical data
- Extra wide input range 100/115/240/277VAC
- Overvoltage category OVC III (2000m)
- Operating altitude up to 5000m (OVC II)
- Operating temperature: -40°C to +90°C
- EMC compliant without external components
- No load power consumption <100mW max.
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer | Recom |
| Certificates | EN62368-1 / ITE, OVC III, UL62368-1 / ITE |
| Input voltage range (VAC) | 85-305 V |
| Height | 21.5 mm |
| Width | 25.4 mm |
| Length | 45.7 mm |
| Application | ITE/AV |
| Power | 10 W |
| Efficiency | 84.00% |
