About the product

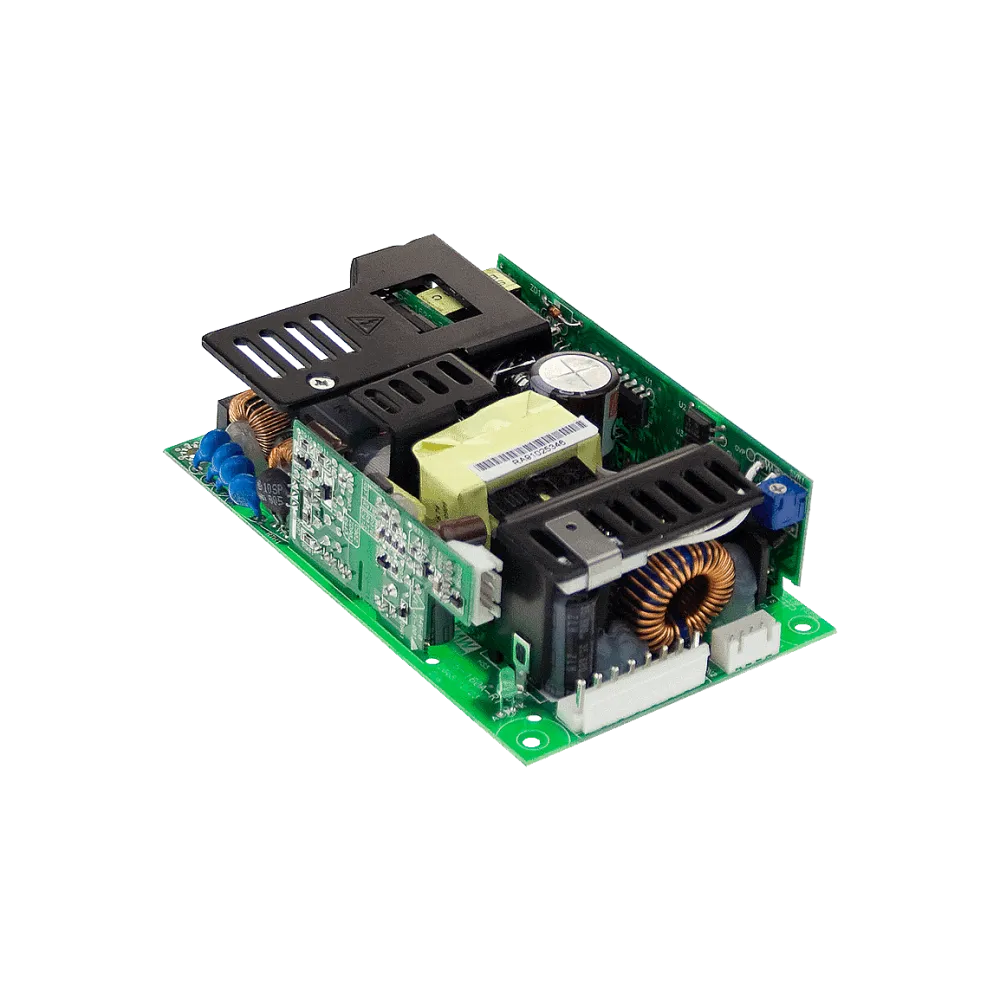

103W Medical Open Frame Power Supply 5V/20A
Technical data
- Universal AC input 90 to 264Vac
- No load power consumption <0.75W
- 2x MOPP (Isolation: primary to secondary)
- Suitable for BF application with appropriate system consideration
- Power Good Signal, 5V/0.6A Standby output, Remote On/Off
- Remote Sense function for 5V, 12V and 15V version
- Protection: overload, over voltage and over temperature
- Dimension 127 x 76.2 x 34.6mm (L x W x D)
Product specifications
| Output voltage (VDC) | 5 V |
| Product series | RPSG |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 3 years |
| Status signals | Power good signal |
| Control signals | Remote ON/OFF |
| Height | 34.6 mm |
| Width | 76.2 mm |
| Length | 127 mm |
| Protection class | Class I |
| Standard size | 3 x 5 inches |
| Application | Medical |
| Power | 103 W |
| Efficiency | 86.00% |
