102W Enclosed Power Supply 12V/8.5A, Peak Power

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

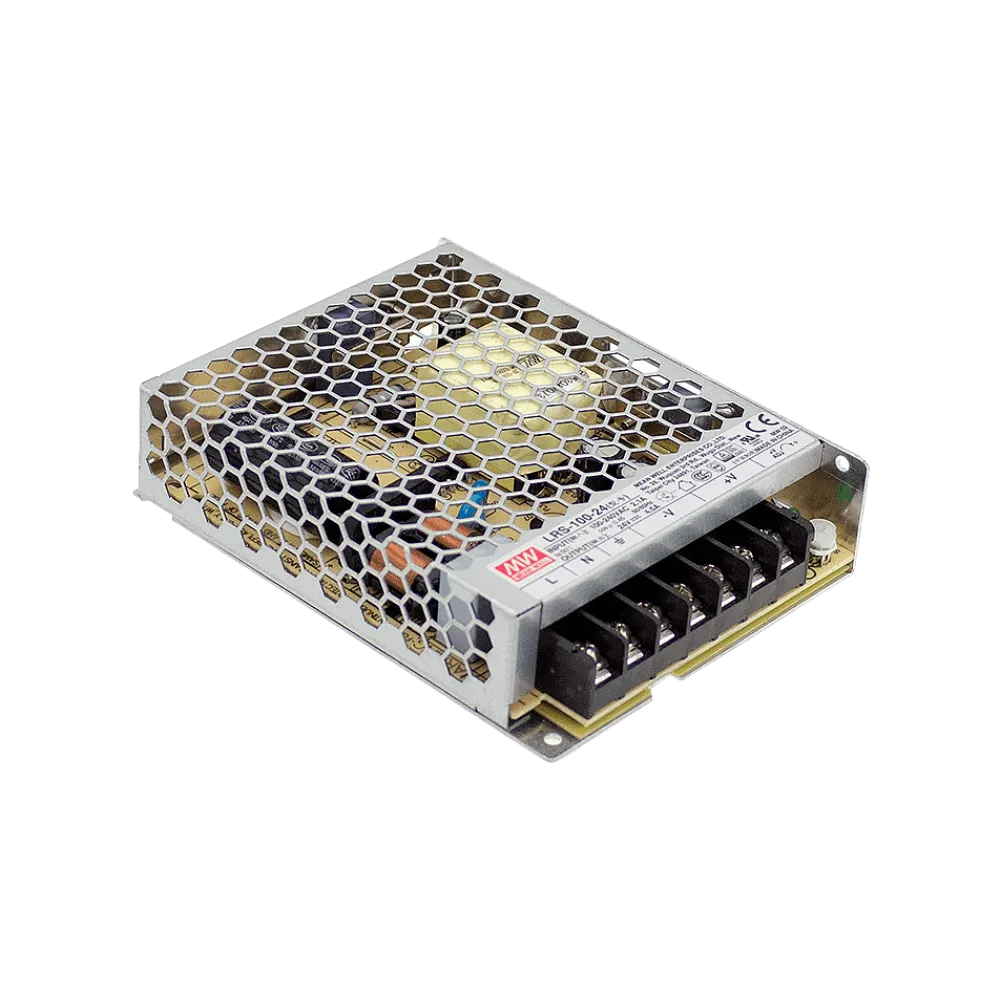

LRS-100N2-12 is a power supply in a perforated plate housing with a low height of only 30mm. In the short term, the power supply delivers up to 200W peak power.

Technical data

Input voltage 85 to 264Vac
Up to 200W peak power
Power consumption at no load <0.5W
Metal housing with screw terminals
Compliant with household appliance standards IEC/EN60335-1 and IEC/EN61558-1,-2-16
Designed for applications up to max. 4000m.a.s.l. operating altitude
Overvoltage category III (OVC III)
Operating temperature range from -30°C to +70°C
Withstands surge voltages up to 300Vac up to 5 sec.
Vibration test up to 5G
Dimensions 129 x 97 x 30mm (L x W x H)

Product specifications

Output voltage (VDC)	12 V
Manufacturer warranty	3 years
Manufacturer	MEAN WELL
Additional functions	OVC III, Peak Power
Application	Household, ITE/AV
Voltage setting range	10.2-13.8 VDC
Height	30 mm
Width	97 mm
Length	129 mm
Protection class	Class I
Input voltage range (VAC)	85-264 V
Power	102 W
Efficiency	88.00%
