About the product

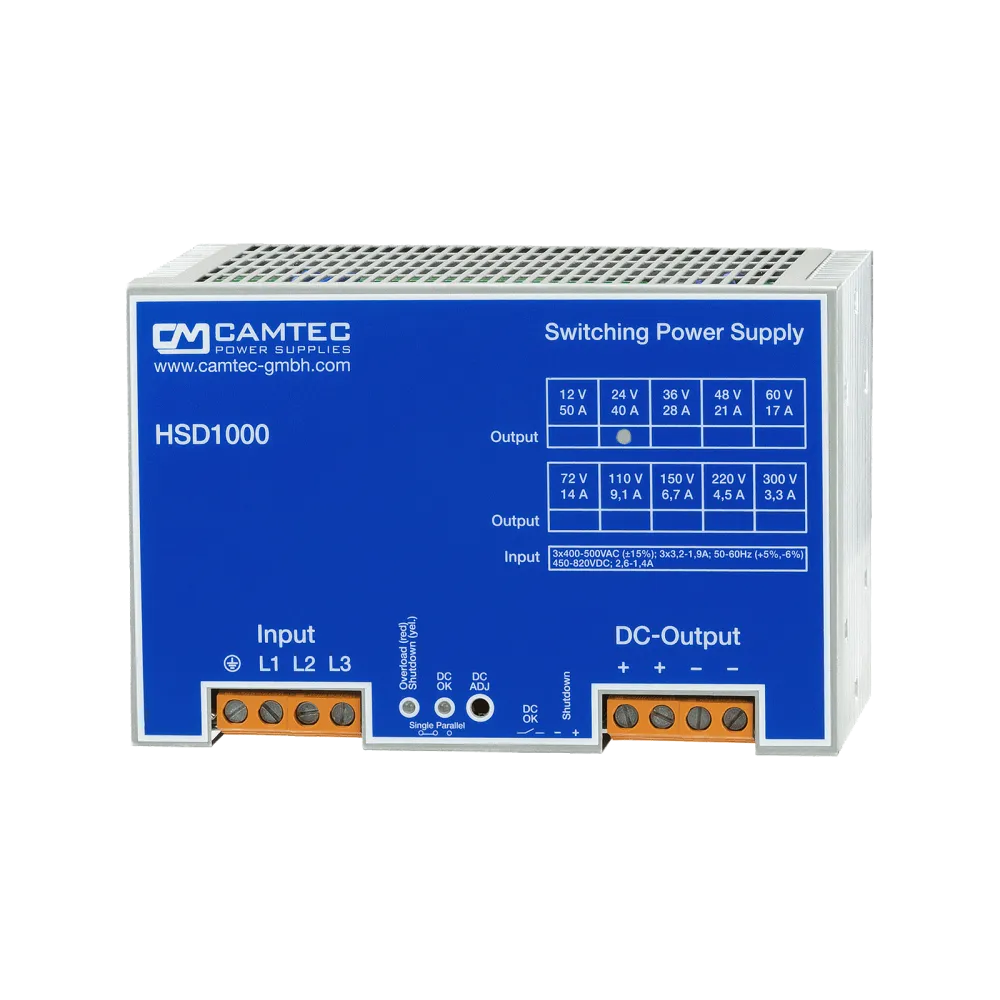

1022W DIN Rail Power Supply 72V/14.2A
Technical data
- Universal AC input 340 to 575Vac
- Active Inrush current limiter <20A / 14.4Aeff
- Can be installed on DIN Rail TS-35
- Springterminal 0.5 to 16mm²
- Efficiency 92%
- Protection: zero load, short circuit, over- and undervoltage
- Operating temperature -25° to +60°C at full load
- Typical U/I-characteristic for complex, capacitive loads and DC-Motors
- Serial und parallel operation
- Dimension 132 x 200 x 125mm (H x W x D)
- High reliable, shock- and vibration resistant
- 2 years warranty
- Fabricant: Camtec
Product specifications
| Output voltage (VDC) | 72 V |
| Manufacturer | Camtec |
| Manufacturer warranty | 2 years |
| Product series | HSD |
| Status signals | AC OK relay contact, DC OK relay contact |
| Control signals | Remote ON/OFF |
| Overload characteristics | Constant current limiting |
| Additional functions | Parallel connectable |
| Depth | 120.8 mm |
| Height | 131.5 mm |
| Width | 200 mm |
| Input voltage range (VAC) | 340-575 V |
| Output current | 14 A |
| Power | 1022 W |
| Efficiency | 90.00% |
